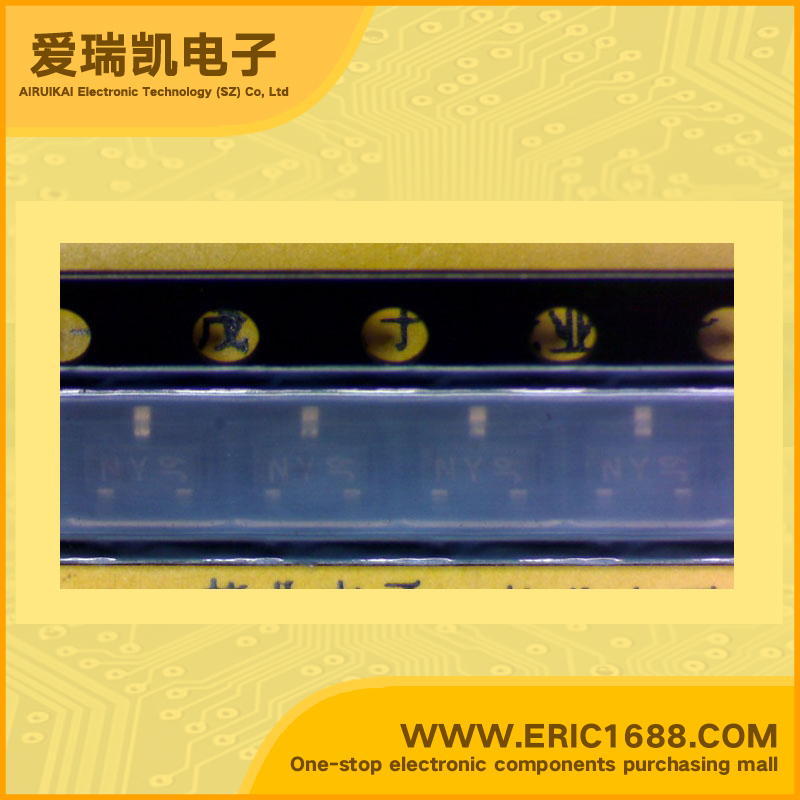

KRC232S NPN Bipolar Digital Transistor (BRT) 30V 600mA/0.6A 5.6k SOT-23/SC-59 marking NY switch radio muting circuit interface circuit driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)30V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)15V
集电极连续输出电流IC Collector Current(IC)600mA/0.6A
基极输入电阻R1 Input Resistance(R1)5.6KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)200-800
截止频率fT Transtion Frequency(fT)200MHz
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFEATURES SWITCHING APPLICATION. AUDIO MUTING APPLICATION INTERFACE CIRCUIT DRIVER CIRCUIT APPLICATION. With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process.
描述与应用特性 开关中的应用。 音频静音电路应用 接口电路 驱动器电路中的应用。 内置偏置电阻器。 简化电路设计。 减少了部件数量和制造工艺。
