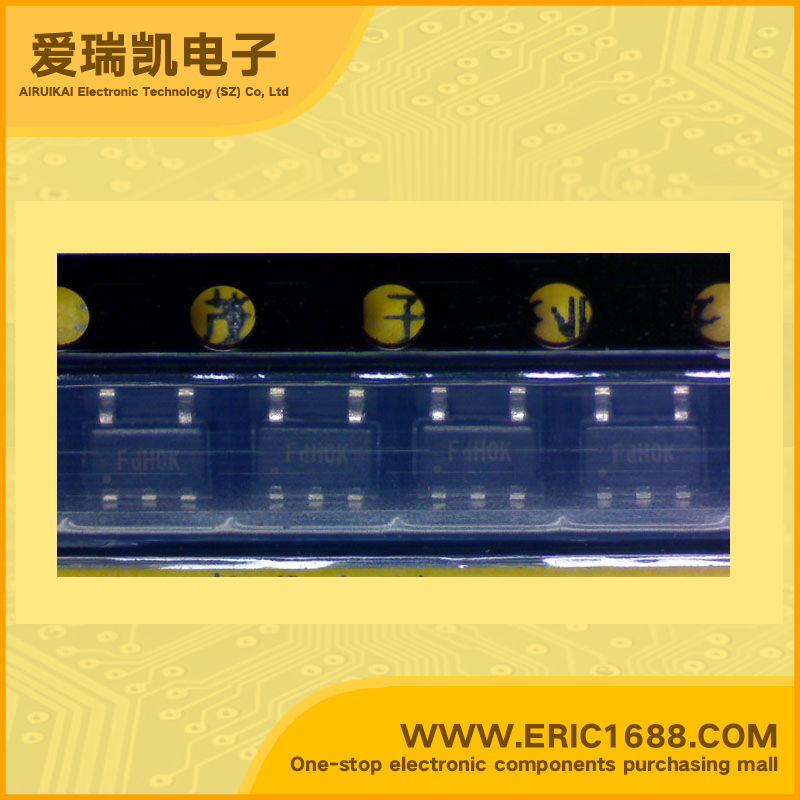

FP6133-25S5PTR LDO Voltage Regulator 2.5V 460mV/0.46V SOT-153/SOT23-5 marking FdHOK Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 460mV/0.46V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 300mA Low Dropout Linear Regulator with Shutdown ;•Low Dropout Voltage of 250mV at 300mA •High Ripple Rejection at 60 dB • Guaranteed 60mA Output Current •Very Low Quiescent Current at 30µA •Max. ± 2% Output Voltage Accuracy •Needs Only 1µF Capacitor for Stability •Thermal Shutdown Protection •Current Limit Protection •Active Low Shutdown Control • Low-ESR Ceramic Capacitor for Output Stability •Tiny Packages: SOT-23-5, SC-70-5 and SC-82 •RoHS Compliant •DSC •Wireless Devices •LCD Modules •Battery Power Systems •Card Readers •PDA |
| 描述与应用 | 300mA的低压差线性稳压器关机;•在300mA250mV的低压差 •在60分贝的高纹波抑制 •保证60mA输出电流 •非常低的静态电流为30μA •最大。 ±2％的输出电压精度 •只需要1μF电容器的稳定性 •热关断保护 •电流限制保护 •低电平关断控制 •低ESR陶瓷电容输出稳定性 •小型封装：SOT-23-5，SC-70-5，SC-82 •符合RoHS标准 •DSC •无线设备 •液晶显示模块 •电池供电系统 •读卡器 •PDA |
