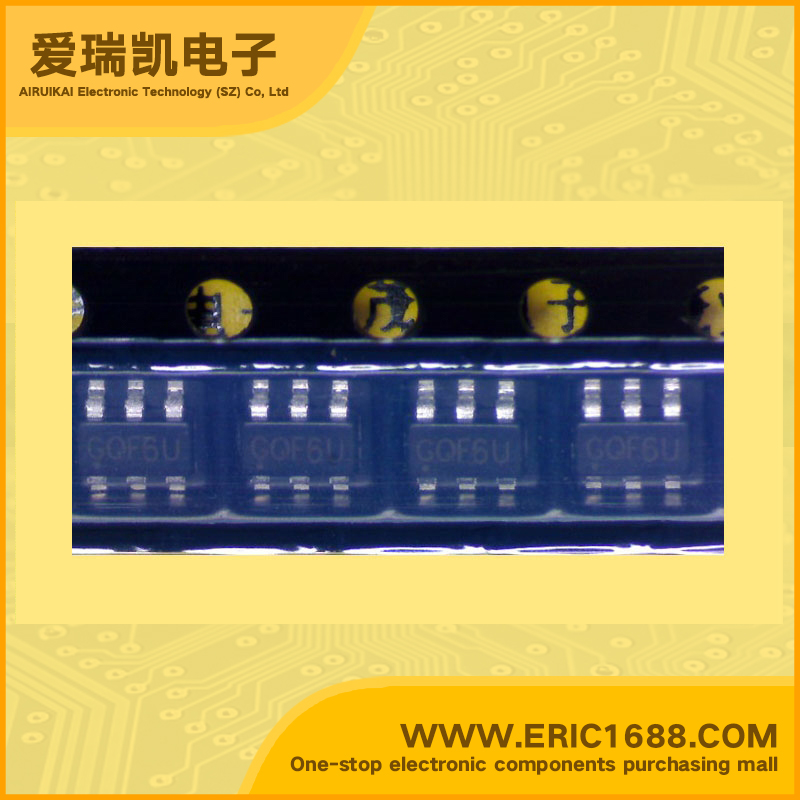

AAT3223IGU-3.3-T1 LDO Voltage Regulator 3.3V 180mV/0.18V With Enable Pin SOT-163/SOT23-6 marking GQF Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.3~6V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 250mA/0.25A |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 667mW/0.667W |
| Description & Applications | 250mA NanoPower™ LDO Linear Regulator with Power-OK;•1.1µA Quiescent Current • 250mA Output Current • Low Dropout: 190mV (typical) • High Accuracy: ±2% • Current Limit Protection • Over-Temperature Protection • Extremely Low Power Shutdown Mode • Low Temperature Coefficient • Stable Operation With Virtually Any Output Capacitor Type • Active High Enable Pin • 4kV ESD • 6-pin SOT23 Package • Cellular Phones • Digital Cameras • Handheld Electronics • Notebook Computers • PDAs • Portable Communication Devices • Remote Controls |
| 描述与应用 | 250毫安纳功率LDO 线性稳压电源就绪;•1.1μA静态电流 •250mA输出电流 •低压差：190mV（典型值） •高准确度：±2％ •电流限制保护 •过温保护 •极低功耗关断模式 •低温度系数 •稳定运行几乎任何输出 电容式 •高电平有/yes效使能引脚 •4KV ESD •6引脚SOT23封装 •蜂窝电话 •数码相机 •手持式电子 •笔记本电脑 •掌上电脑 •便携式通信设备 •远程控制 |
