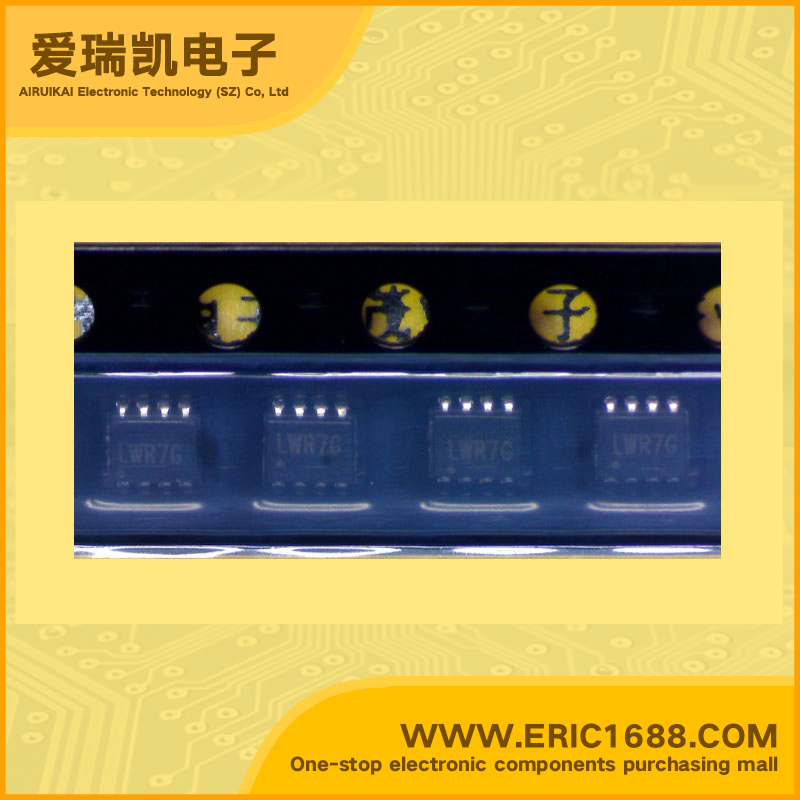

AAT3218IJS-1.25-T1 LDO Voltage Regulator 1.25V 200mV/0.2V With Enable Pin SC70JW-8 marking LWR Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 1.25V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 200mV/0.2V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 526mW/0.526W |
| Description & Applications | 150mA MicroPower™ High Performance LDO;• Low Dropout - 200mV at 150mA • Guaranteed 150mA Output • High accuracy ±1.5% • 70µA Quiescent Current • High Power Supply Ripple Rejection • Low self noise • Fast line and load transient response • Short circuit protection • Over-Temperature protection • Uses Low ESR ceramic capacitors • Shutdown mode for longer battery life • Low temperature coefficient • SOT23 5-pin or SC70-JW 8-pin package • Cellular Phones • Notebook Computers • Desktop Computers • Portable Communication Devices • Personal Portable Electronics • Digital Cameras |
| 描述与应用 | 150MA微功率™高性能LDO;•低压差 - 150mA时为200mV的 •保证150mA输出 •高精度±1.5％ •70μA静态电流 •高电源纹波抑制 •低自噪声 •快速线路和负载瞬态响应 •短路保护 •过温保护 •使用低ESR陶瓷电容器 •关断模式，延长电池寿命 •低温度系数 •SOT235引脚SC70-JW8引脚封装 •蜂窝电话 •笔记本电脑 •台式电脑 •便携式通信设备 •个人便携式电子产品 •数码相机 |
