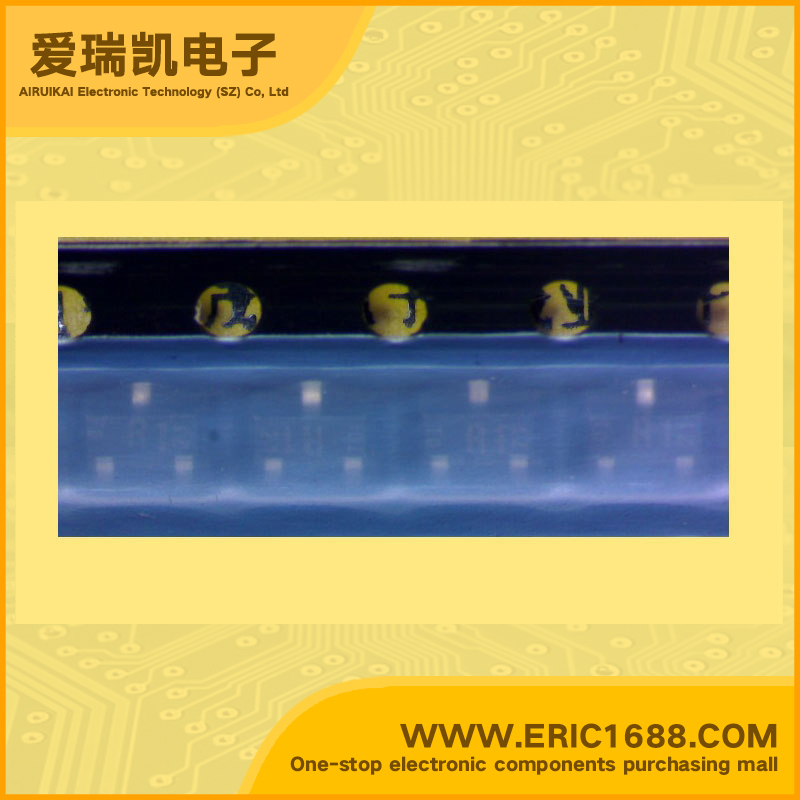

BFR93-GS08 NPN Transistors(BJT) 20V 40mA 5GHz 25~150 SOT-23/SC-59 marking R1 RF amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 40mA |
| 截止频率fT Transtion Frequency(fT) | 5GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 25~150 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon Planar RF Transistor Applications RF amplifier up to GHz range specially for wide band antenna amplifier. Features High power gain Low noise figure High transition frequency |
| 描述与应用 | NPN硅平面RF晶体管 应用 RF放大器高达GHz范围内，专为宽波段天线放大器。 特点 高功率增益 低噪声系数 高转换频率 |
