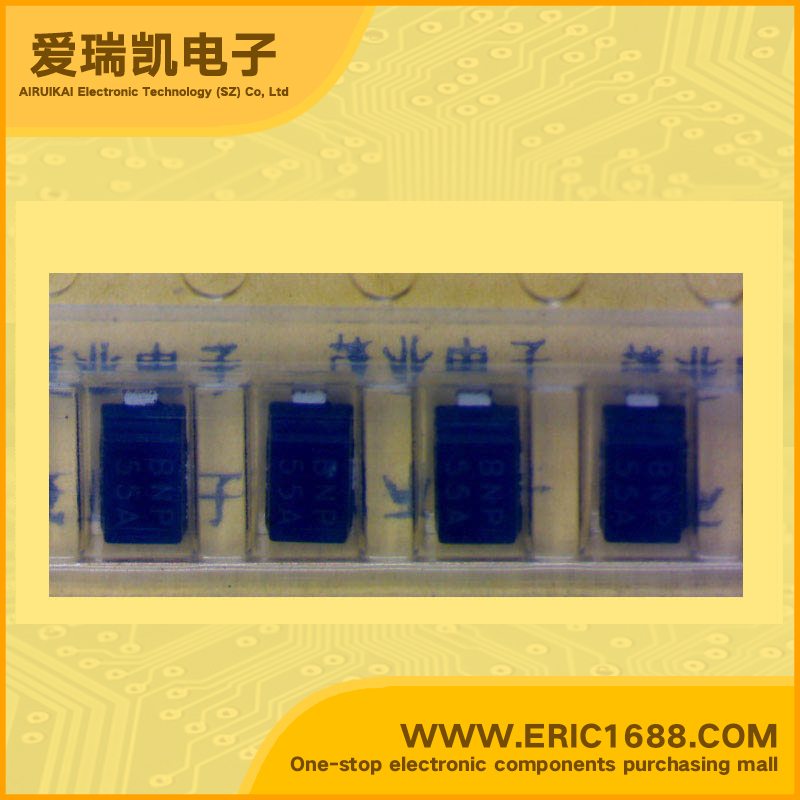

TPSMP27-E3/85 TVS/ESD 21.8V 10.2A SMP marking BNP/55A
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 21.8V |
| 反向击穿电压VBR Breakdown Voltage | 27V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 400W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 10.2A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | High Power Density Surface Mount Automotive Transient Voltage Suppressors；Specification Features: •Vishay General Semiconductor •High Power Density Surface Mount Automotive Transient Voltage Suppressors •Very low profile - typical height of 1.0 mm •Ideal for automated placement •Uni-direction only •Exclusive patented PAR oxide passivated chip construction •Excellent clamping capability •Low incremental surge resistance •Very fast response time •Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C •Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC |
| 描述与应用 | 高功率密度表面贴装汽车 瞬态电压抑制器;规格特点： •威世通用半导体 •高功率密度表面贴装汽车瞬态电压抑制器 •非常低调 - 典型的高度为1.0毫米 •适合自动放置 •单向方向 •独家专利的PAR氧化物钝化芯片建设 •出色的钳位能力 •低增量浪涌电阻 •非常快的响应时间 •会见MSL每1，J-STD-020，LF最大峰值为260°C •组件按照RoHS 2002/95/EC和WEEE2002/96/EC |
