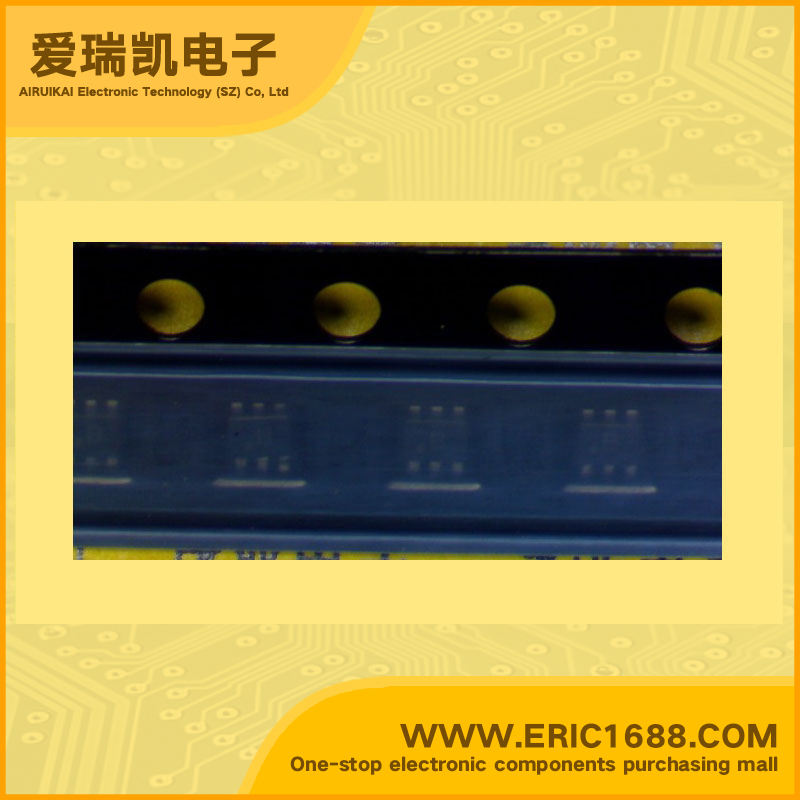

uclamp0505A.TCT TVS/ESD 5V 7A SOT-563/SC-89/SOT-666 marking B
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 100W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 7A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features: •5-Line ESD protection Array •Transient protection for data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) •Protects five I/O lines •Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) •requires less than 2.9mm2 of PCB area •Working voltage: 5V •Low leakage current •Low operating and clamping voltages •Solid-state silicon-avalanche technology |
| 描述与应用 | 特点： •5线ESD保护阵列 •瞬态保护的数据线 IEC61000-4-2（ESD）的15kV（空气），8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） •保护5个I / O线 •超小型SC-89封装（1.7×1.7×0.6毫米） •需要PCB面积小于2.9平方毫米 •工作电压：5V •低漏电流 •低工作电压和钳位 •固态硅雪崩技术 |
