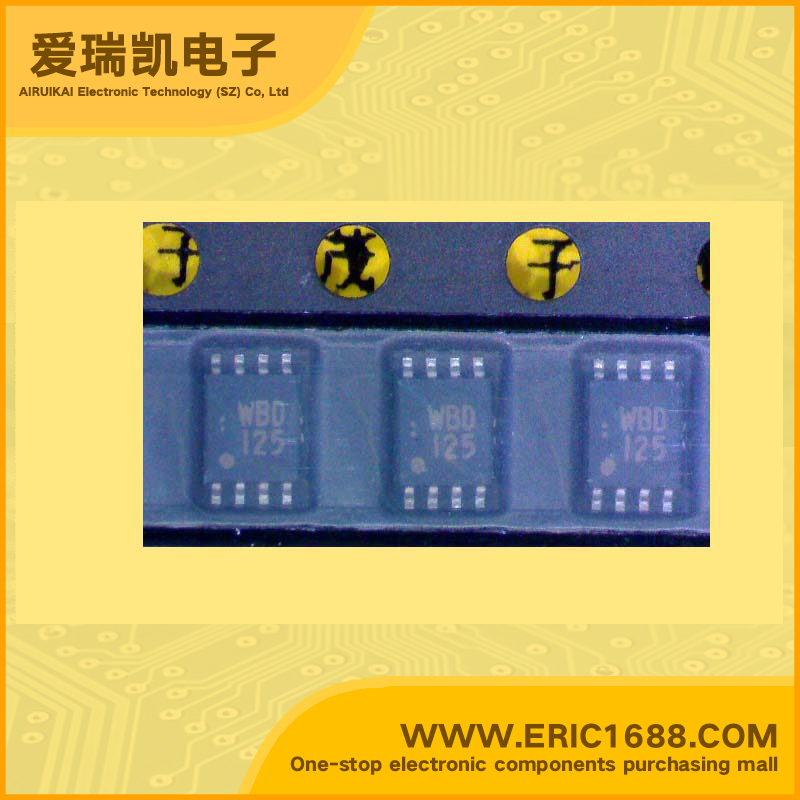

TC7WBD125FK Signal Switch, Multiplexer, Decoder VFSOP8/US8 marking WBD125

Hot selling goods

Product description
逻辑类型
Logic Type
总线开关 Bus Switch
电路数
Number of Circuits
输入数
Number of Inputs
电源电压Vcc
Voltage - Supply
静态电流Iq
Current - Quiescent (Max)
单电源 Single Supply
输出高,低电平电流
Current - Output High, Low
4.5 V ~ 5.5 V
低逻辑电平
Logic Level - Low
The TC7WBD125FK is a low on-resistance, high-speed CMOS 2-bit bus switch. This bus switch allows the connections or disconnections to be made with minimal propagation delay while maintaining Low power dissipation which is the feature of CMOS.When output enable (OE) is at low level, the switch is on; when at high level, the switch is off. The device is enable to realize the shift of signal level from 5 V to 3.3 V. All inputs are equipped with protector circuits to protect the device from static discharge. Operating voltage: VCC = 4.5~5.5 V High speed operation: tpd = 0.25 ns (max) Ultra-low on resistance: RON = 5 Ω (typ.) Electro-static discharge (ESD) performance: ±200 V or more (JEITA) ±2000 V or more (MIL) TTL level input (control input) Low Power Dissipation: Icc = 10 A (max.) Package: US8
高逻辑电平
Logic Level - High
TC7WBD125AFK是一个低导通电阻,高速CMOS 2位总线开关。这个总线开关允许以最小的传播延迟连接或断开,同时保持CMOS低功耗的特点。当输出使能(OE)为低电平时,开关处于打开状态。为高电平时,开关处于关闭状态。该设备实现实现信号电平从5 V到3.3 V的移位。所有输入都配有保护电路的静电放电保护装置。 工作电压:VCC= 4.5〜5.5 V 高速运行:TPD =0.32 ns(最大) 超低电阻:RON= 5Ω(典型值) 静电放电(ESD)性能:±200 V或以上(JEITA)±2000 V以上(MIL) TTL电平输入(控制输入) 低功耗:ICC=10 A(最大) 包装:US8
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
