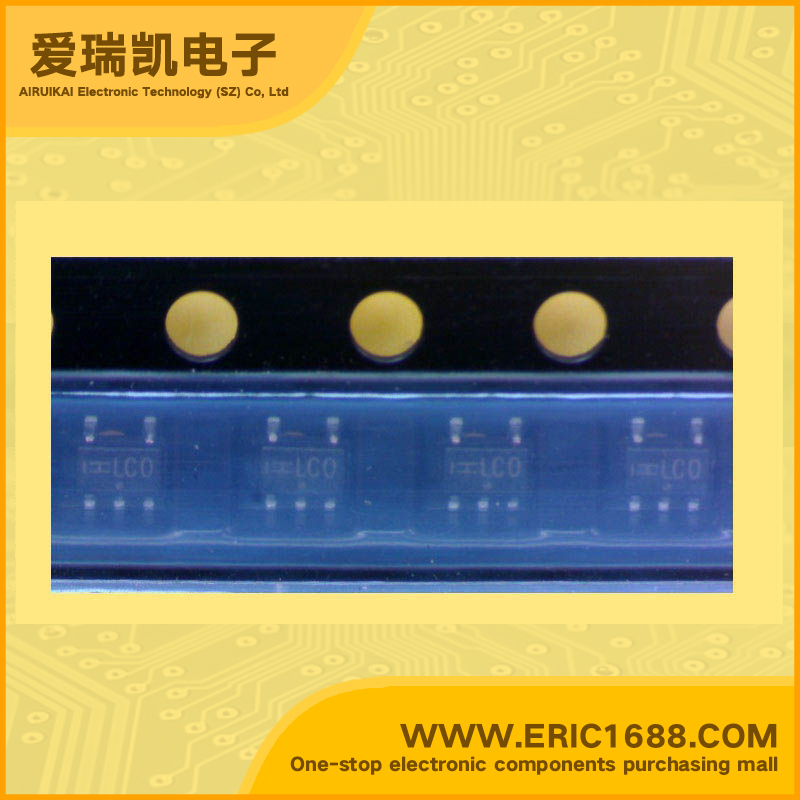

NCP512SQ28T1G LDO Voltage Regulator 2.8V 350mV/0.35V With Enable Pin SOT-353/SC70-5/SC88A marking LCO Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 2.8V |
| 输出电流Io Current - Output | 80mA |
| 最大压降VDO Voltage - Dropout | 350mV/0.35V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 80 mA CMOS Low Iq Voltage Regulator in an SC70-5 ;•Low Quiescent Current of 40 A Typical • Low Dropout Voltage of 250 mV at 80 mA • Low Output Voltage Option • Output Voltage Accuracy of 2.0% • Industrial Temperature Range of −40°C to 85°C • Cellular Phones • Battery Powered Consumer Products • Hand−Held Instruments • Camcorders and Cameras |
| 描述与应用 | 80毫安的CMOS低Iq稳压器在SC70-5;•低静态电流为40典型 •低压差电压为250 mV，在80毫安 •低输出电压选项 •输出电压精度为2.0％ •工业温度范围为-40°C至85°C •蜂窝电话 •电池供电消费者产品 •手持式仪表 •摄像机和照相机 |
