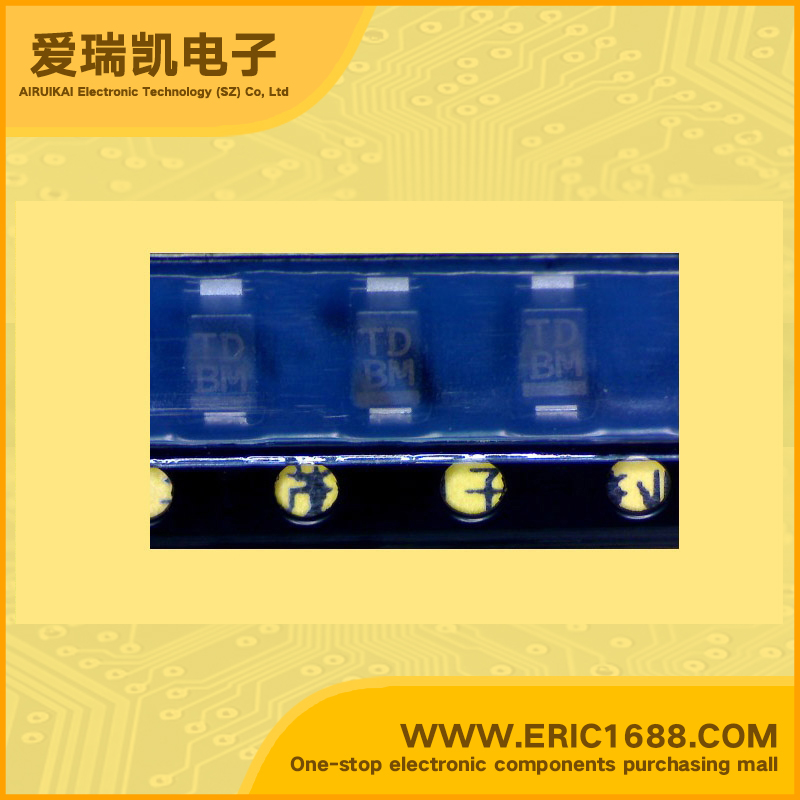

SMF15A-GS08 TVS/ESD 15V 8.2A SOD-123/1206-15V marking TD
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 15V |
| 反向击穿电压VBR Breakdown Voltage | 16.7V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 200W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 8.2A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES • Surface Mount ESD Protection Diodes • For surface mounted applications • Low-profile package • Optimized for LAN protection applications • Ideal for ESD protection of data lines in accordance with IEC 61000-4-2 (IEC 801-2) • Ideal for EFT protection of data lines in accordance with IEC 61000-4-4 (IEC 801-4) • ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge • Low incremental surge resistance, excellent clamping capability • 200 W peak pulse power capability with a 10/1000 µs waveform, repetition rate (duty cycle): 0.01 % • Very fast response time • High temperature soldering guaranteed: 260 °C/10 s at terminals • e3 - Sn • AEC-Q101 qualified • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC • Halogen-free according to IEC 61249-2-21 definiton |
| 描述与应用 | 特点 •表面贴装ESD保护二极管 •对于表面安装应用 •薄型封装 •优化局域网保护应用 •适用于数据线的ESD保护符合IEC61000-4-2（IEC801-2） •适用于EFT保护的数据线根据IEC61000-4-4（IEC801-4） •ESD保护ACC。 IEC61000-4-2 ±30 kV接触放电 ±30 kV空气放电 •低增量浪涌性，优良的钳位能力 •200瓦峰值脉冲功率能力与10/1000微秒波形，重复率（占空比）：0.01％ •非常快的响应时间 •高温焊接保证：260°C/10秒终端 ·E3 - 锡 •通过AEC-Q101资格 •符合RoHS指令2002/95/EC和按照WEEE 2002/96/EC •无卤素根据IEC61249-2-21 定义的 |
