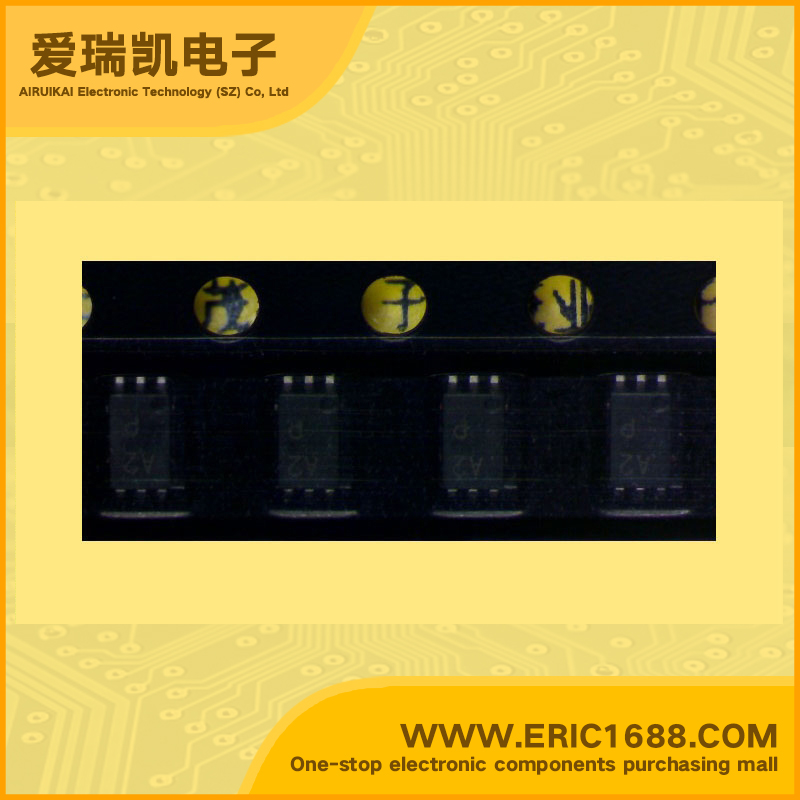

SM6503AD-G-EL TVS/ESD 90A 0.22W/220mW 6-PIN SON marking A2
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | |
| 反向击穿电压VBR Breakdown Voltage | |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 90A |
| 额定耗散功率Pd Power dissipation | 0.22W/220mW |
| Description & Applications | Features • Diode Array for ESD Protection •± 12kV ESD immunity level (IEC61000-4-2 contact discharge) • Clamp voltage: 7.5V typ. • Low capacitance: 10pF typ. • 5 circuits integrated into one package • Ultra-small package • SM6503AD: 6-pin SON • SM6503AH: SOT23-6 APPLICATIONS • Cellular phone • PDA • Set Top Box • Digital Still Camera |
| 描述与应用 | 特点 •ESD保护二极管阵列 •±12kV的静电放电抗扰度（IEC61000-4-2接触放电） •钳位电压：7.5V（典型值）。 •低电容：10pF的典型。 •5电路集成到一个封装 •超小型封装？ •SM6503AD：6引脚SON •SM6503AH：SOT23-6 应用 •蜂窝电话 •PDA •机顶盒 •数码相机 |
