SCH2830 complex FET MOSFET+schottky diode -20V -1A 700mA/0.7A 0.48V SOT-563/SCH6 marking XF low on-resistance/ultra high-speed switch/short reverse recovery time/low forward voltage

Model：SCH2830-S-TL-E

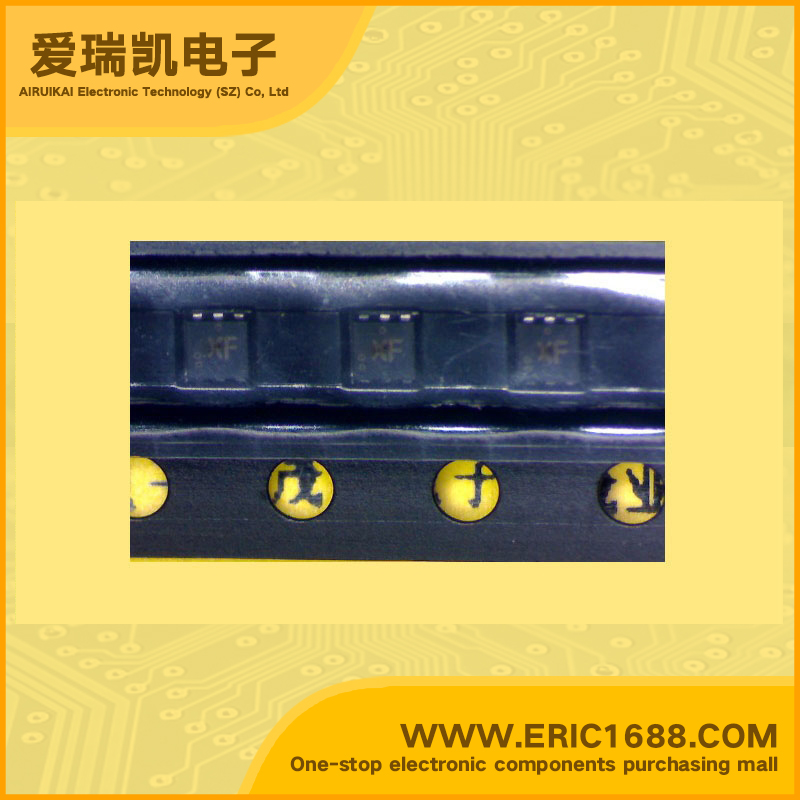

Mark / screen / code / typing：XF
Manufacturer：
Date Code：08NOPB 08+ROHS
Package：SOT-563/SCH6
Standard Package：5000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	P沟道 P-Channel
最大栅源极电压Vgs(±) Gate-Source Voltage	-20V
最大漏极电流Id Drain Current	-10V
源漏极导通电阻Rds Drain-Source On-State Resistance	-1A
开启电压Vgs（th） Gate-Source Threshold Voltage	500mΩ@ VGS =-4V, ID =-500mA
耗散功率Pd Power Dissipation	-0.4~-1.4V
Description & Applications	肖特基二极管SBD Schottky Barrier Diodes
描述与应用	30V
