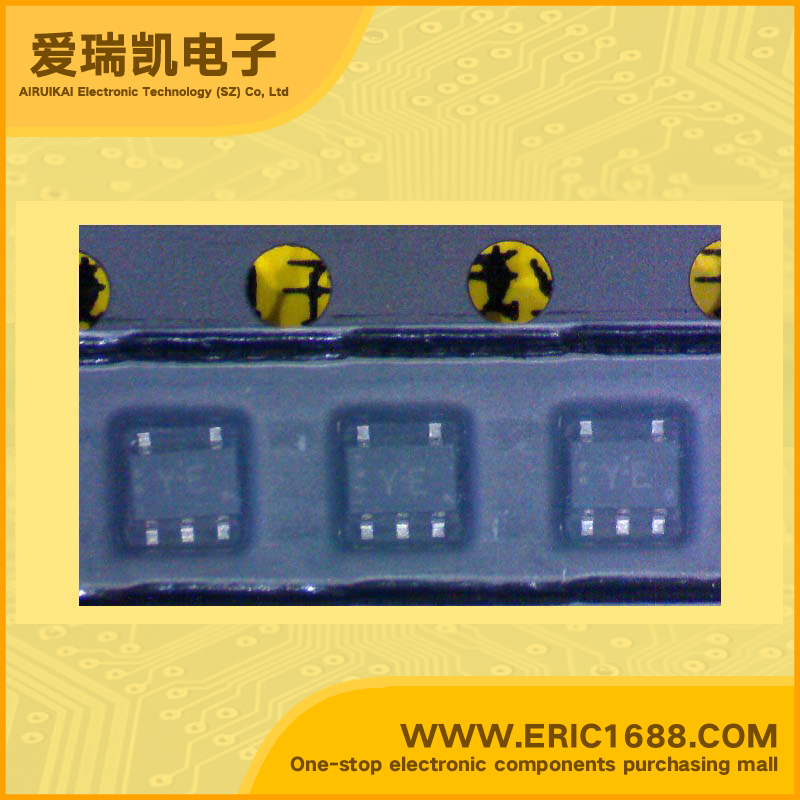

RN2705 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=2.2KΩ R2=47kΩ 200mW/0.2W SOT-353/usv/SC70-5 marking YE switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage |
-50V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -100MA/-0.1A |
| Input Resistance(R1) | 2.2KΩ |
| Base-Emitter Resistance(R2) | 47KΩ |
| Base-Emitter Input Resistance Ratio (R1/R2) | 0.0468 |
| DC Current Gain(hFE) | 80 |
| Transtion Frequency(fT) | 200MHZ |
| Power Dissipation （Pd） | 0.2W |
| Description & Applications | Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications
Including two devices in USV (ultra super mini type with 5 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
|
