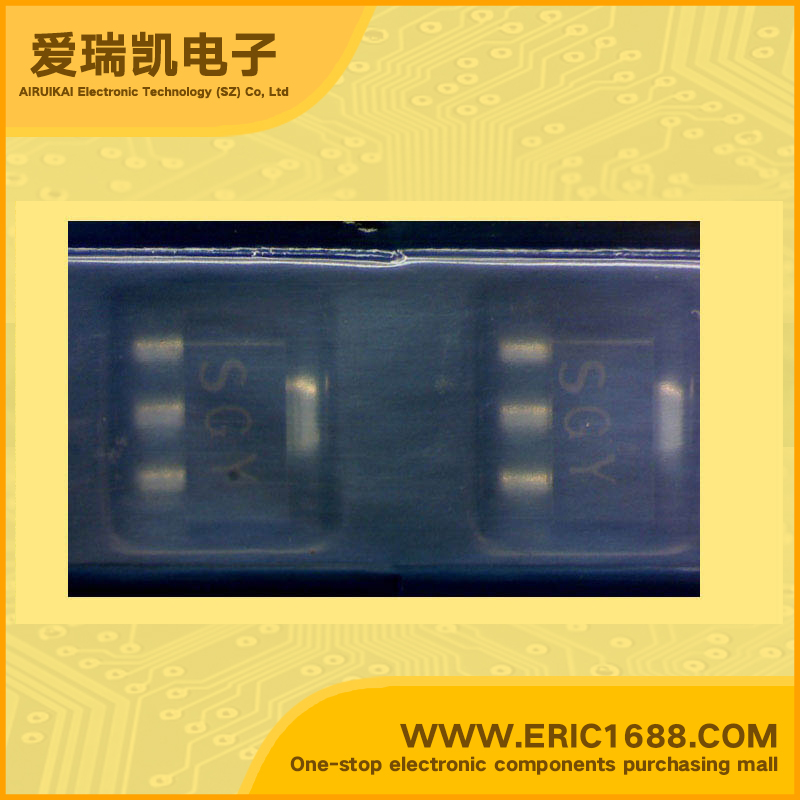

KSA1203-YTF PNP transistors（BJT） -30V -1.5A 120MHz 160~320 -2V SOT-89/SC-62 marking SGY low-frequency power amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流IC Collector Current(IC) | -1.5A |
| 截止频率fT Transtion Frequency(fT) | 120MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 160~320 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -2V |
| 耗散功率Pc PoWer Dissipation | 500mW/0.5W |
| Description & Applications | PNP Epitaxial Silicon Transistor Low Frequency Power Amplifier • 3W Output application • Complement to KSC2883 |
| 描述与应用 | PNP外延硅晶体管 低频功率放大器 •3W输出应用 •补充型KSC2883 |
