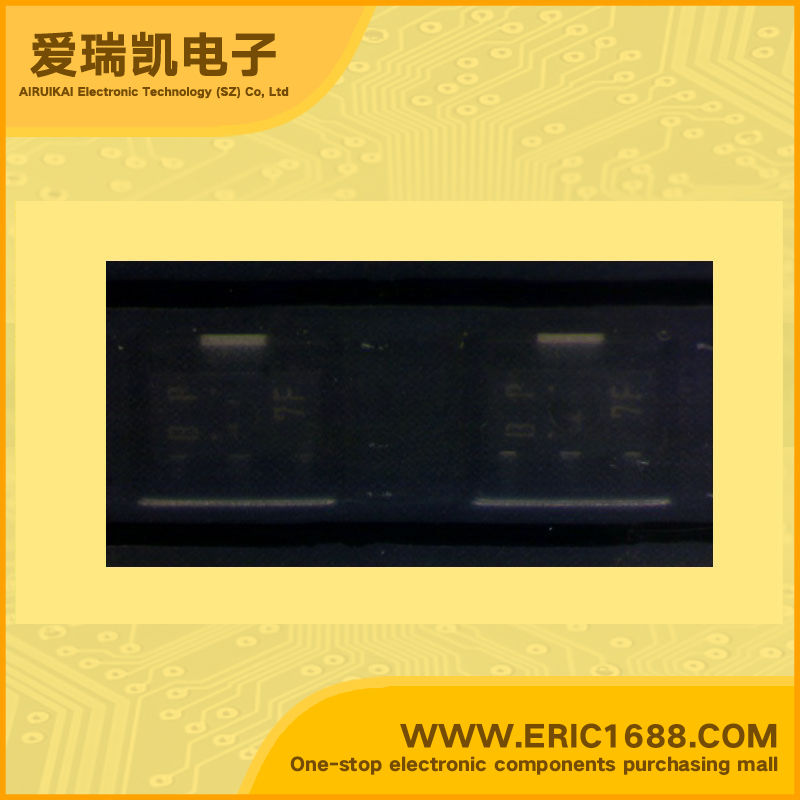

2SB1397 PNP transistors（BJT） -25V -2A 300MHz 70 -500mV/-0.5V SOT-89/PCP marking BP motor driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -25V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −20V |
| 集电极连续输出电流IC Collector Current(IC) | -2A |
| 截止频率fT Transtion Frequency(fT) | 300MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 70 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率Pc PoWer Dissipation | 1.3W |
| Description & Applications | PNP Silicon epitaxial planar transistor Compact motor driver applications Feature Contains diode between base and emitter. Large current capacity Low saturation voltage small size package |
| 描述与应用 | PNP硅外延平面晶体管 紧凑型电机驱动器应用 特点 基极和发射极之间包含二极管。 大电流容量 低饱和电压 小尺寸封装 |
