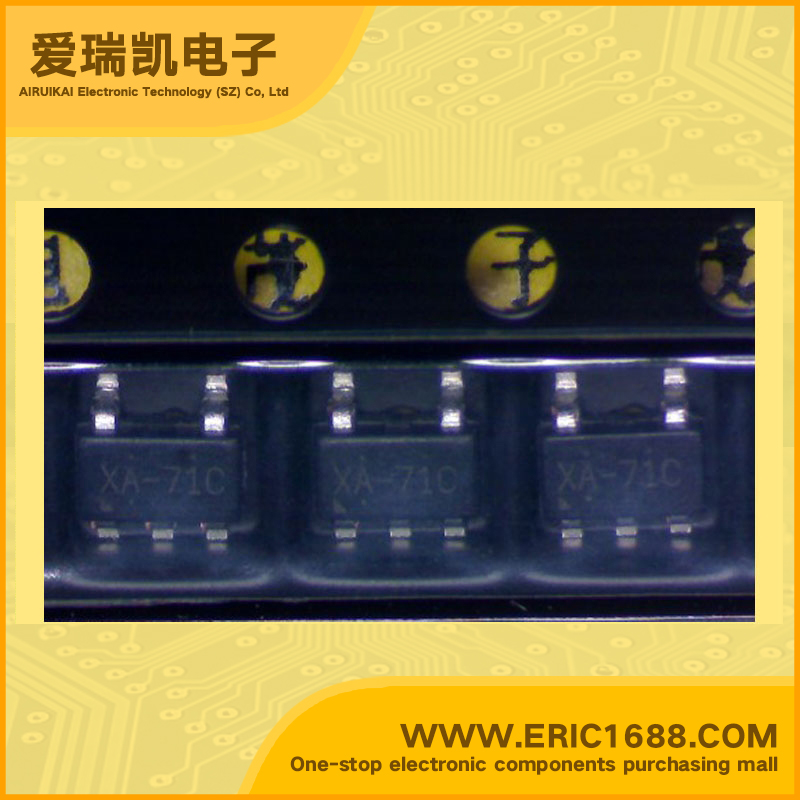

RT9179PB LDO Voltage Regulator Adjustable 300mV/0.3V With Enable Pin SOT-153/SOT23-5 marking XA-71C Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 可调/adj |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Adjustable, 300mA LDO Regulator with Enable ;•300mV Dropout @ 300mA •150uA Low Ground Pin Current •Excellent Line and Load Regulation •<1uA Standby Current in Shutdown Mode •Guaranteed 300mA Output Current •Stable with 1uF Input and Output Ceramic Capacitor •Adjustable Output Voltage Ranges from 1.175V to4.5V •Over-Temperature /Over-Current Protection •RoHS Compliant and 100% Lead (Pb)-Free |
| 描述与应用 | 可调，300mA LDO稳压器具有使能;•300mV的压降@300毫安 •150UA低接地引脚电流 •出色的线路和负载调节 •<1uA的待机电流关断模式 •保证300mA输出电流 •稳定与1uF的输入和输出陶瓷电容器 •可调输出电压范围从1.175V to4.5V的 •过温/过电流保护 •符合RoHS标准，100％无铅（pb）产品 |
