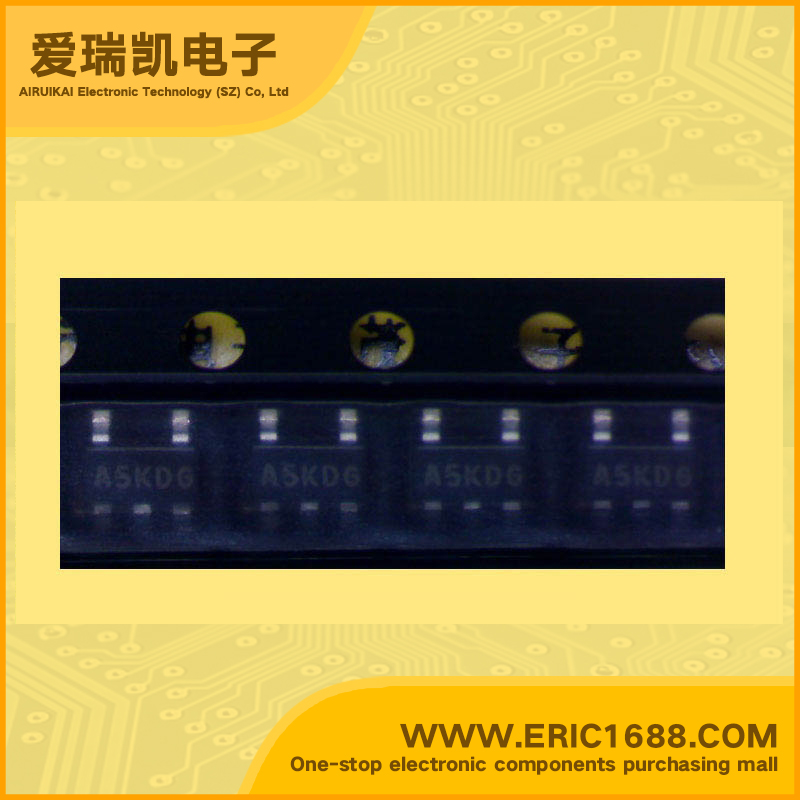

MM3142KNRE LDO Voltage Regulator 2.9V 220mV/0.22V SOT-153/SOT-25A/SOT23-5 marking A5K Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2~6V |
| 输出电压VOUT Voltage - Output | 2.9V |
| 输出电流Io Current - Output | |
| 最大压降VDO Voltage - Dropout | 220mV/0.22V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | IC for 150mA Regulator ;I/O voltage difference 0.22V typ. (IO=150mA, VOUT=3.0V) •Output noise voltage 30µVrms typ. •Recommended maximum output current 150mA max. •No-load current consumption 45µA typ. • High ripple rejection rate 70dB (1kHz, IOUT=30mA) •Output voltage rank 1.2~5.0V (0.1V steps) •Output ON/OFF control function High: ON, Low: OFF |
| 描述与应用 | 150mA的稳压器IC;•I / O电压差0.22V典型值（IO=的150mA，VOUT= 3.0V） 输出噪声电压典型30μVRMS •推荐最大输出电流最大150mA。 •空载电流消耗45μA（典型值） •高纹波抑制率70分贝（1千赫，IOUT=30毫安） •输出电压等级1.2〜5.0V（0.1V） •输出开/关控制功能：开，低：关 |
