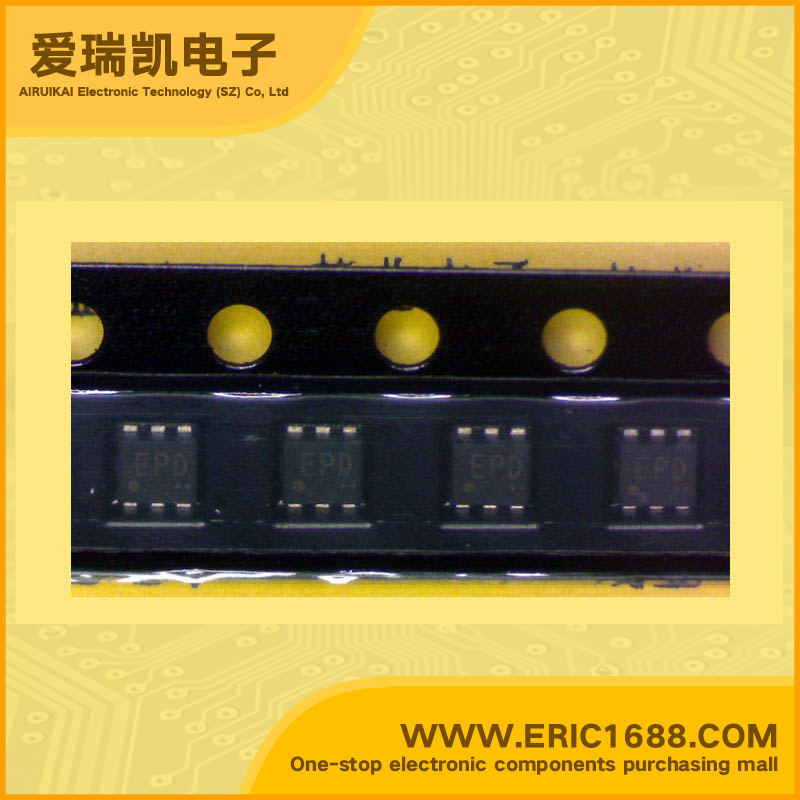

TC7SP3067TU Signal Switch, Multiplexer, Decoder uf6 marking EPD
| 逻辑类型 Logic Type | 总线开关 Bus Switch |
| 电路数 Number of Circuits | |
| 输入数 Number of Inputs | |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 双电源 Dual Supply |
| 输出高，低电平电流 Current - Output High, Low | 1.1 V ~ 2.7 V 1.65 V ~ 3.6 V |
| 低逻辑电平 Logic Level - Low | The TC7SP3066 and TC7SP3067 are high-speed CMOS one-bit analog bus switches with separate power supplies for control and switch portions. In the TC7SP3066, the switch is on when Output Enable (OE) is High. In the TC7SP3067, the switch is on when Output Enable ( OE ) is Low. The TC7SP3066 and TC7SP3067 support power-down protection by incorporating 3.6-V-torelant control inputs. These devices are suitable for applications where the control voltage is lower than the signal line voltage. All inputs are equipped with protection circuits against static discharge or transient excess voltage. Operating voltage range: VCCA = 1.1 to 2.7 V (Control portion) VCCB = 1.65 to 3.6 V (Switch portion) ON-resistance: RON = 8 Ω (max) (VCCB = 2.7 V) RON = 10 Ω (max) (VCCB = 2.3 V) ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V Ultra-small package: UF6 3.6-V tolerance function and power-down protection at the Output Enable input. |
| 高逻辑电平 Logic Level - High | TC7SP3066和TC7SP3067是高速CMOS一位模拟总线开关，有着独立电源用于控制开关部分。 在TC7SP3066中，当输出使能（OE）是高，开关是开着的。 在TC7SP3067中，当输出使能（OE）是低，开关是开着的。TC7SP3066和TC7SP3067支持断电保护功能。这些器件适用于控制电压低于所述信号线电压的应用中。 所有输入都配备了防静电放电保护电路或瞬态过电压。 工作电压范围： VCCA=1.1到2.7 V（控制部分） VCCB=1.65到3.6 V（开关部分） 导通电阻RON=8Ω（最大值）（VCCB=2.7 V） RON=10Ω（最大值）（VCCB=2.3 V） ESD性能：机器型号≥±200 V 人体模式≥±2000 V 超小型封装：六氟化铀 3.6-V容限功能和断电保护输出使能输入。 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
