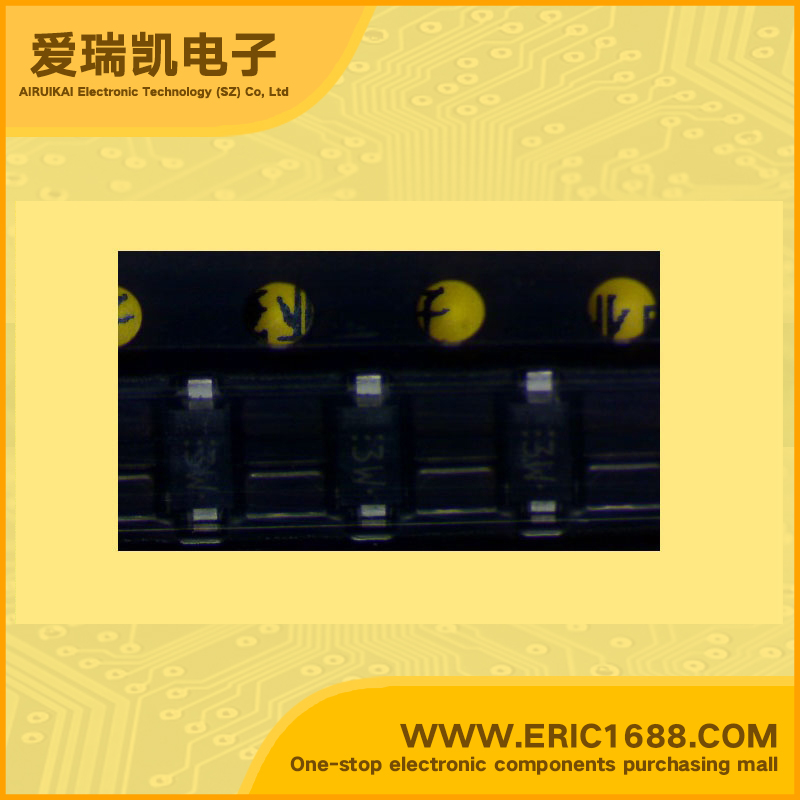

MA22D2300L SBD Schottky Barrier Diodes 25V 1A 530mV/0.53V SOD-123/1206 marking 3W high frequencyrectifier

Model：MA22D2300L
Mark / screen / code / typing：3W
Manufacturer：
Date Code：09NOPB 09NOPB
Package：SOD-123/1206
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	25V
平均整流电流Io AVerage Rectified Current	1A
最大正向压降VF Forward Voltage(Vf)	530mV/0.53V
最大耗散功率Pd Power dissipation
Description & Applications	• Silicon epitaxial planar type • For high frequency rectification • IF(AV) = 1 A rectification is possible. • High IFSM (IFSM = 30 A) • Small reverse current IR. •Schottky Barrier Diodes (SBD)
描述与应用	•硅外延平面型 •对于高频整流 •IF（AV）=1整改是可能的。 •高IFSM（IFSM=30） •小反向电流IR。 •肖特基势垒二极管（SBD）
