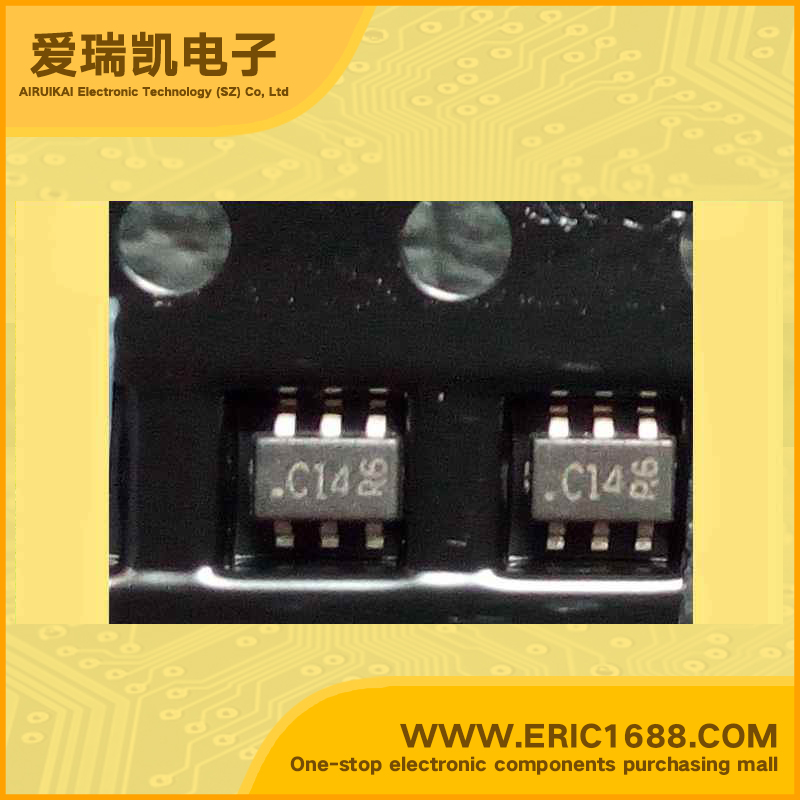

DCX114YU-7 NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 100mA/-100mA 100~600 200mW/0.2W SOT-363/SC-88/SC70-6 marking C14 switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V/-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V/-50V
集电极连续输出电流IC Collector Current(IC)100mA/-100mA
Q1基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio0.21
Q2基极输入电阻R1 Input Resistance(R1)10KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio0.21
直流电流增益hFE DC Current Gain(hFE)100~600
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation200mW/0.2W
Description & ApplicationsFeatures •SMALL SIGNAL COMPLEMENTARY PRE-BIASED DUAL TRANSISTOR •Epitaxial Planar Die Construction •Built-In Biasing Resistors •Lead Free/RoHS Compliant (Note 3) •Surface Mount Package Suited for Automated Assembly
描述与应用特点 •小信号互补预偏置双晶体管 •外延平面电路小片建设 •内置偏置电阻器? •无铅/ RoHS规定(注3) •表面贴装封装,适合于自动化装配
