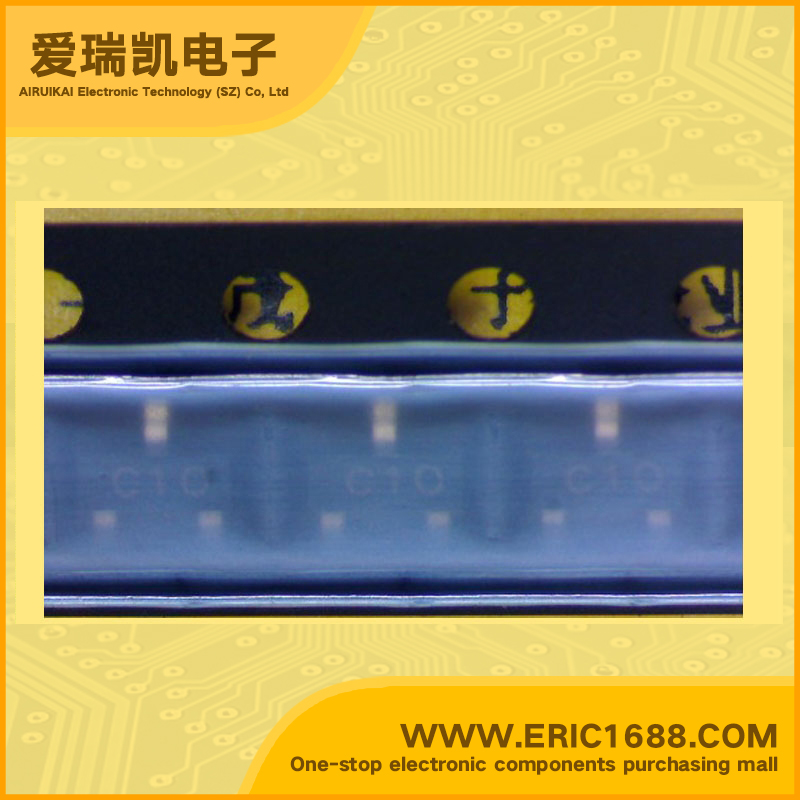

SRC210 NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 10k 10k SOT-23/SC-59 marking C10 digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 35 |
| 截止频率fT Transtion Frequency(fT) | 80MHz |
| 耗散功率Pc Power Dissipation | 0.4W/400mW |
| Description & Applications | Silicon NPN epitaxial planer transistor For digital circuits Features Costs can be reduced through downsizing of the equipment andreduction of the number of parts. Mtype package allowing easy automatic and manual insertion as well as stand-alone fixing to the printed circuit board. |
| 描述与应用 | NPN硅外延平面晶体管的 用于数字电路 特性 可减少通过lCosts设备的小型化和 减少部件的数量。 M型封装，便于自动和手动插入 以及作为独立的固定在印刷电路板 |
