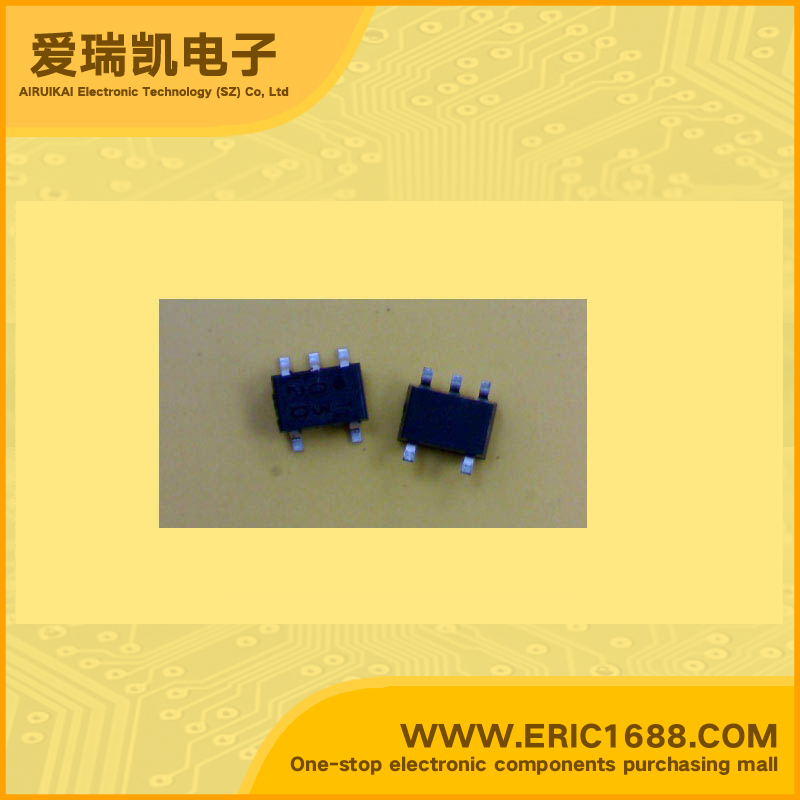

NJM2828F3-07 LDO Voltage Regulator -7V 130mV/0.13V SOT-353/SC88A/SC70-5 marking T0320 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -14V |
| 输出电压VOUT Voltage - Output | -7V |
| 输出电流Io Current - Output | 130mA/0.13A |
| 最大压降VDO Voltage - Dropout | 130mV/0.13V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 250mW/0.25W |
| Description & Applications | Negative Output Low Drop Out voltage regulator ;•Low Current Consumption 0.13V (typ.) @Io=60mA • High Precision Output ±1.5% •High Ripple Rejection 65dB(typ.) @f=1kHz, Vo=-7V Version •Output capacitor with 0.1F ceramic capacitor. • Output Current Io(max.)=100mA • ON/OFF Control(Positive voltage control from 0 to +5V) • Soft-start Function • Shunt SW Function • Internal Thermal Overload Protection • Internal Short Circuit Current Limit • Bipolar Technology • Package Outline SC88A |
| 描述与应用 | 负输出低压降稳压器;•低电流消耗（典型值）0.13V@ IO =60毫安 •高精度输出±1.5％ •高纹波抑制65分贝（典型值）@ F =1kHz时，VO=-7V版本 •输出电容与0.1μF的陶瓷电容。 •输出电流Io=100MA（最大） •开/关控制（从0到+5 V的正电压控制） •软启动功能 •分流SW功能 •内部热过载保护 •内部短路电流限制 •双极技术 •封装SC88A |
