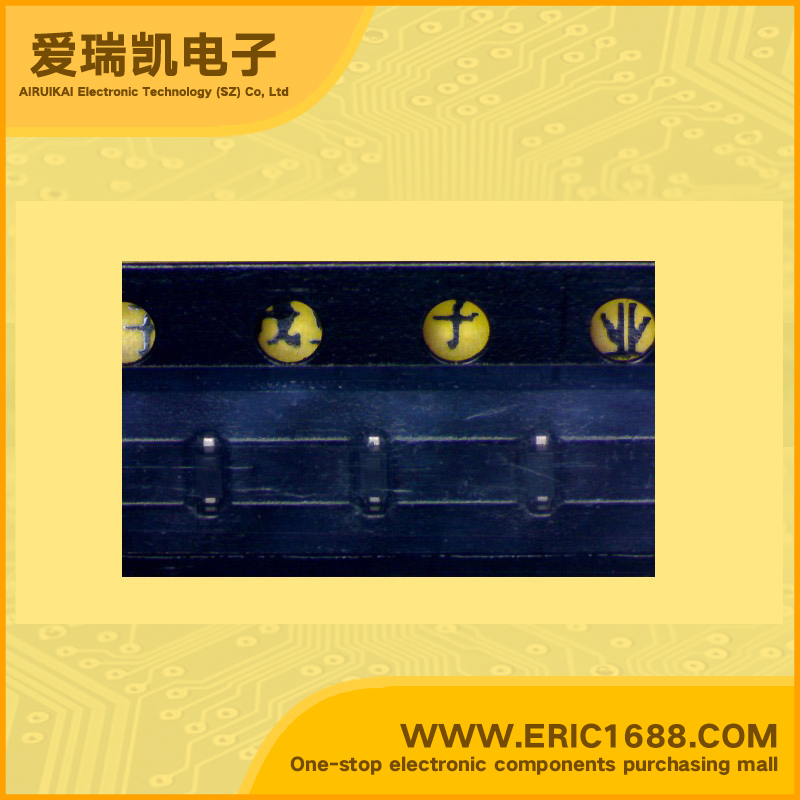

SMV1247-079 Variable Capacitance Diodes (Varicaps, Varactors) 15V 4.4pF 4.6 SOD-523/SC-79/0603 marking UHF SHF tuning/High capacitance ratio
| 反向电压VR Reverse Voltage | 15V |
| 电容值C Diode capacitance | 4.4pF |
| @反向电压VR @Reverse Voltage | 1V |
| 电容值C Diode capacitance | 0.95pF |
| @反向电压VR @Reverse Voltage | 3V |
| 电容比 Capacitance ratio | 4.6 |
| Description & Applications | Hyperabrupt Junction Tuning Varactors Description The SMV1211–SMV1215 series of silicon hyperabrupt junction varactor diodes is designed for use in VCOs with low tuning voltage operation. This family of varactors is characterized for capacitance and resistance over temperature. SPICE models are provided. Designed for high volume commercial applications High capacitance ratio, C0.3V/C4.7V = 12 Multiple packages SOT-23, SOD-323, SC-70 and SC-79 Available lead (Pb)-free MSL-1 @ 250 °C per JEDEC J-STD-020 SPICE models are available Available in tape and reel packaging |
| 描述与应用 | 超突变结调谐变容二极管 描述 SMV1211-SMV1215系列硅超突变结变容二极管的设计用于VCO具有低调谐电压操作。 这个家庭的特点是变容二极管的电容和电阻随温度。 SPICE模型。 为大批量商业应用而设计 高电容率，C0.3V/C4.7V=12 多个程序封装SOD-323，SOT-23，SC-70，SC-79 SPICE模型 卷带式包装可行 |
