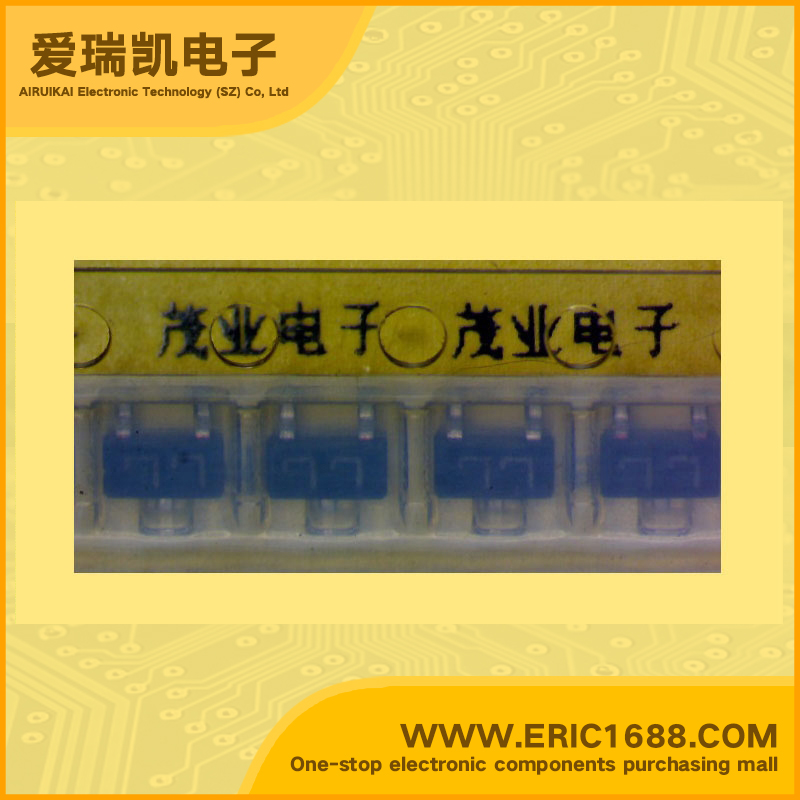

2SC2712-BL NPN Transistors(BJT) 60V 150mA/0.15A 80MHz 350~700 250mV/0.25V SOT-23/SC-59 marking LL radio general amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC Collector Current(IC) |
150mA/0.15A |
| 截止频率fT Transtion Frequency(fT) |
80MHz |
| 直流电流增益hFE DC Current Gain(hFE) |
350~700 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage |
250mV/0.25V |
| 耗散功率Pc Power Dissipation |
150mW/0.15W |
| Description & Applications | NPN Silicon epitaxial Transistors. Audio frequency general purpose amplifier applications . Features: High voltage and high current, Excellent hFE linearity, High hFE, Low noise, Small package, Complementary to 2SA1162. |
| 描述与应用 | NPN硅外延晶体管, 音频通用放大器. 特点: 高电压和高电流, 优秀HFE线性, 高HFE, 低噪音, 小型封装, 互补2SA1162. |
