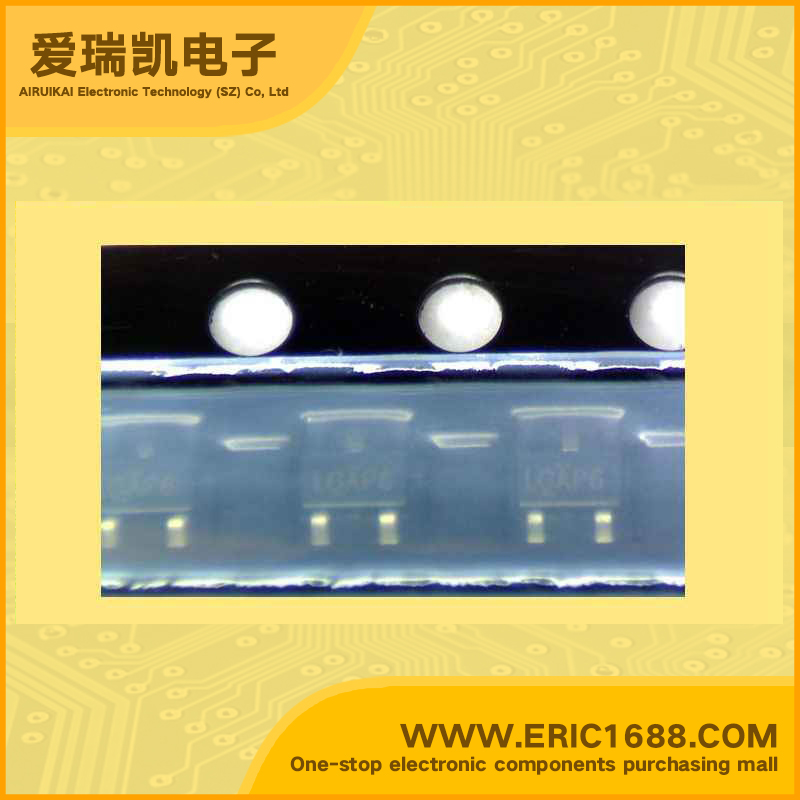

BAT54SWPBF series connection SBD Schottky Barrier Diodes 30V 200mA/0.2A 1V SOT-323/SC-70 marking JGAP6 fast switch

Model：BAT54SWPBF
Mark / screen / code / typing：JGAP6
Manufacturer：
Date Code：07+NOPB
Package：SOT-323/SC-70
Standard Package：3000
Min Order：10

Hot selling goods

Product description

反向电压Vr Reverse Voltage	30V
平均整流电流Io AVerage Rectified Current	200mA/0.2A
最大正向压降VF Forward Voltage(Vf)	1V
最大耗散功率Pd Power dissipation	230MW/0.23W
Description & Applications	• These diodes feature very low turn-on voltage and fast switching. • These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges. • Schottky barrier diode in series.
描述与应用	•这些二极管具有极低的导通电压和快速切换。 •PN结防过电压保护环，如静电放电保护。 •串联肖特基势垒二极管
