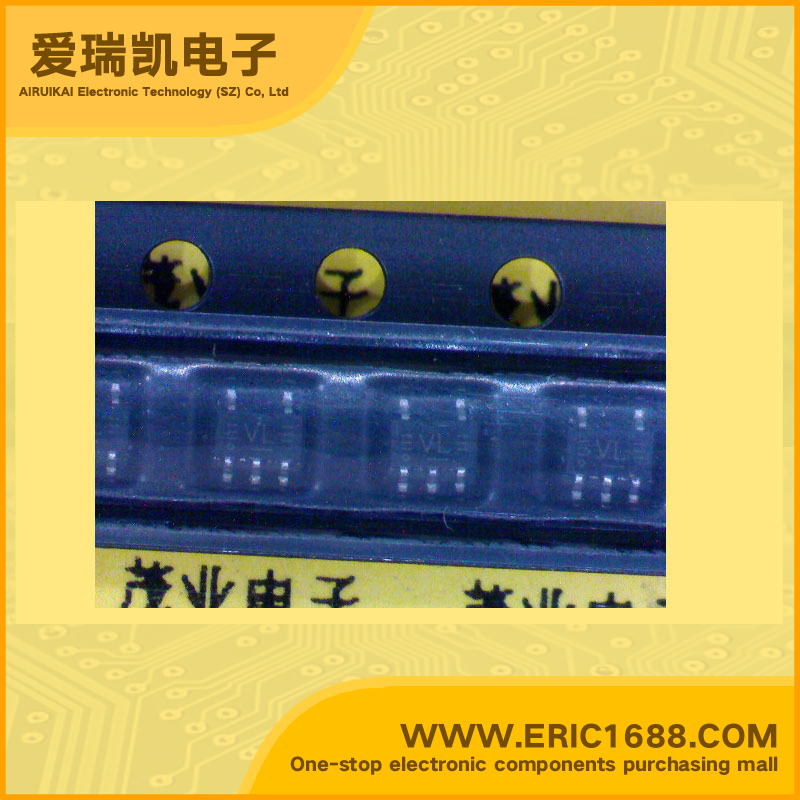

Integrated Circuit（IC） analog switch 74LVC1G66GW SOT-353 marking VL
| 开关配置 Circuit | 单刀单掷 1*SPST |
| 导通电阻 On-State Resistance | 15Ω/Ohm |
| 电源电压 Voltage - Supply | 1.65V~5.5V |
| Description & Applications | Bilateral switch The 74LVC1G66 provides one single pole, single-throw analog switch function. It has two input/output terminals (Y and Z) and an active HIGH enable input pin (E). When E is LOW, the analog switch is turned off. Schmitt-trigger action at the enable input makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 V to 5.5 V. Wide supply voltage range from 1.65 V to 5.5 V Very low ON resistance: 7.5 Ω (typical) at VCC = 2.7 V 6.5 Ω (typical) at VCC = 3.3 V 6 Ω(typical) at VCC = 5 V Switch current capability of 32 mA High noise immunity CMOS low power consumption TTL interface compatibility at 3.3 V Latch-up performance meets requirements of JESD78 Class I ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Enable input accepts voltages up to 5.5 V Multiple package options Specified from −40 °C to +85 °C and −40 °C to +125 °C |
| 描述与应用 | 双边开关 74LVC1G66提供一个单极单掷模拟开关的功能。它有两个 输入/输出端子（Y和Z）和主动高启动输入引脚（E）。当E为低， 模拟开关是关闭的。 在使能输入施密特触发动作使电路宽容输入上升较慢 下降时间在整个VCC范围从1.65 V至5.5 V。 从1.65 V至5.5 V的宽电源电压范围 非常低的导通电阻： 7.5Ω VCC=2.7 V（典型值） 6.5ΩVCC= 3.3 V（典型值） 6 Ω VCC= 5 V（典型值） 开关电流容量为32毫安 高抗干扰 CMOS低功耗 在3.3 V TTL接口的兼容性 闭锁性能符合JESD78类的要求，我 ESD保护： HBM JESD22-A114F超过2000 V MM JESD22-A115-A超过200 V 允许接受输入电压高达5.5 V 多种封装选项 从-40°C至+85°C和-40°C至+125°C |
