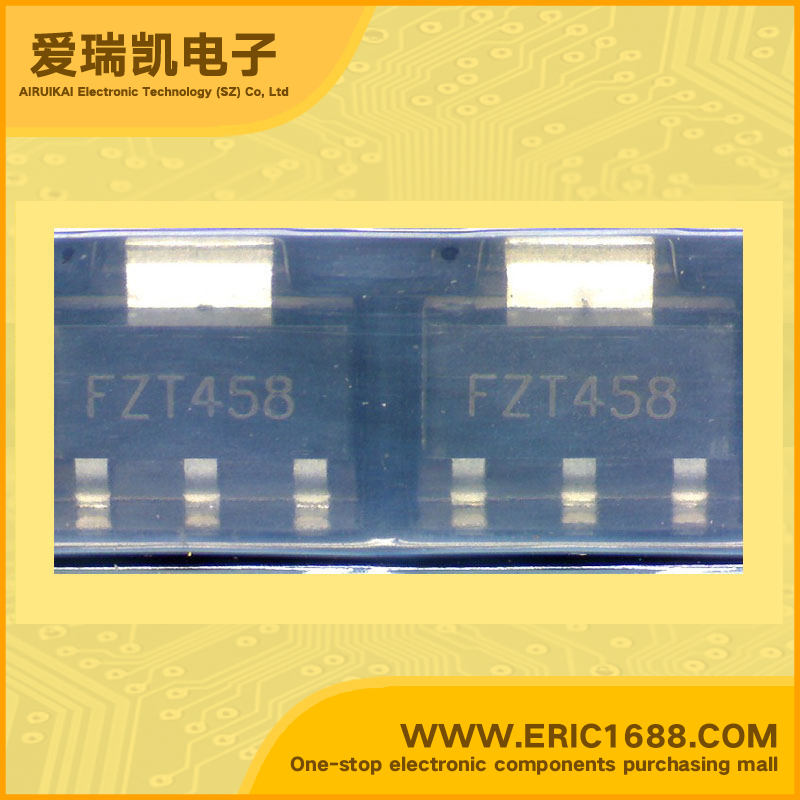

FZT458TA NPN Transistors(BJT) 400V 300mA/0.3A 50MHz 100~300 500mV/0.5V SOT-223 marking FZT458 high voltage
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 400V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 400V |
| 集电极连续输出电流IC Collector Current(IC) | 300mA/0.3A |
| 截止频率fT Transtion Frequency(fT) | 50MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 2W |
| Description & Applications | SOT223 NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR COMPLEMENTARY TYPE FZT558 |
| 描述与应用 | SOT223 NPN硅平面高压晶体管 互补型 FZT558 |
