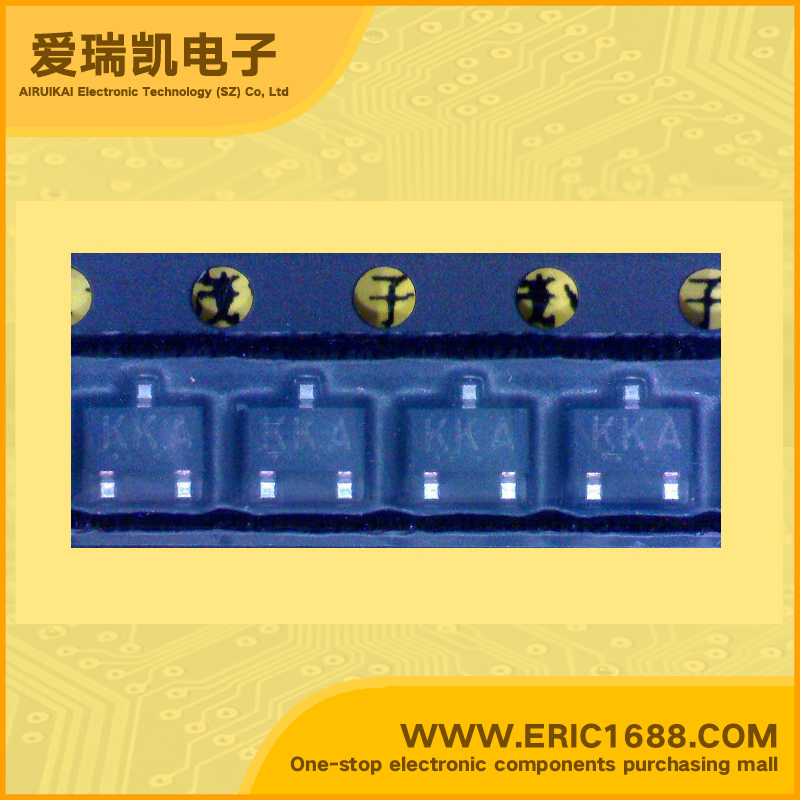

SSM3K302T MOSFET N-Channel 30V 300mA/0.3A SOT-23/SC-59 marking KKA low power/DC/DC converter
| 最大源漏极电压Vds Drain-Source Voltage | 30V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 12V |
| 最大漏极电流Id Drain Current | 300mA/0.3A |
| 源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance | 0.072Ω/Ohm @2A,4VG |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | 0.4-1.0V |
| 耗散功率Pd Power Dissipation | 700mW/0.7W |
| Description & Applications | Power Management Switch Applications High Speed Switching Applications • 1.8 V drive • Low ON-resistance: Ron = 131 mΩ (max) (@VGS = 1.8V) Ron = 87mΩ (max) (@VGS = 2.5V) Ron = 71 mΩ (max) (@VGS = 4.0V) |
| 描述与应用 | 电源管理开关应用 高速开关应用 •1.8 V驱动器 •低导通电阻：罗恩=131MΩ（最大）（@ VGS=1.8V） RON =87mΩ（最大（@ VGS= 2.5V） 罗恩=71MΩ（最大）（@ VGS=4.0V） |
