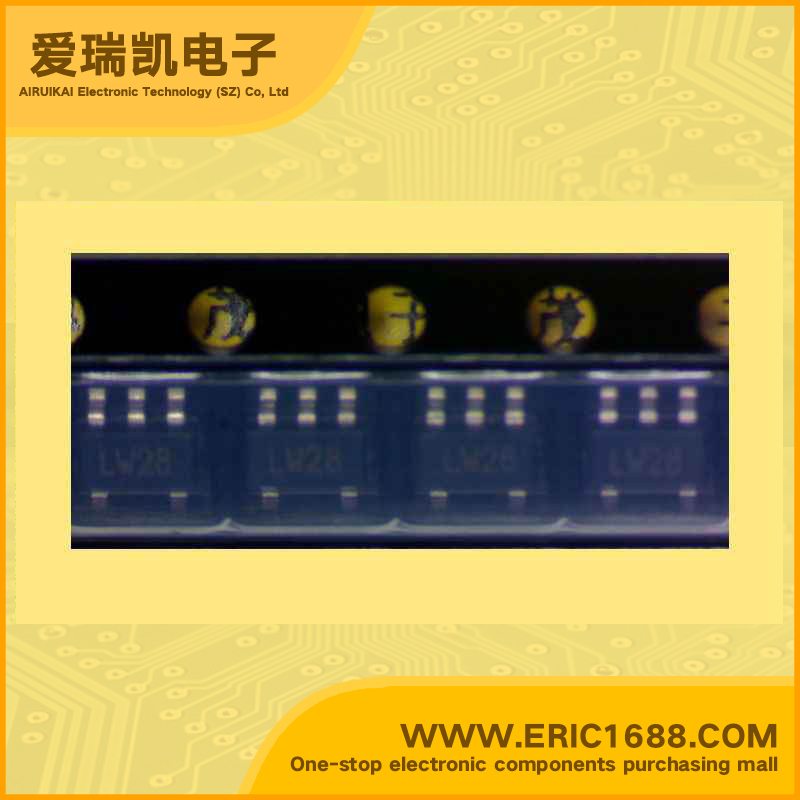

MIC5255-2.8BM5 LDO Voltage Regulator 2.8V 135mV/0.135V With Enable Pin SOT-153/SOT23-5 marking LW28 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
2.7~6V
输出电压VOUT
Voltage - Output
2.8V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
135mV/0.135V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & Applications150mA Low Noise µCap CMOS LDO ;•Input voltage range: 2.7V to 6.0V • Ultra-low output noise: 30µV(rms) • Stability with ceramic output capacitors • Ultra-low dropout: 135mV @ 150mA • High output accuracy: – 1.0% initial accuracy – 2.0% over temperature • Low quiescent current: 90µA • Tight load and line regulation • TTL-Logic-controlled enable input • “Zero” off-mode current • Thermal shutdown and current limit protection • Cellular phones and pagers • Cellular accessories • Battery-powered equipment • Laptop, notebook, and palmtop computers • Consumer/personal electronics
描述与应用150MA CMOS低噪声LDOμCap;•输入电压范围:2.7V至6.0V •超低输出噪声:30μV(RMS) •与陶瓷输出电容的稳定性 •超低压降为135mV@150MA •高输出精度: - 1.0%的初始精度 - 2.0%温度 •低静态电流:90μA •精确的负载和线路调节 •TTL逻辑控制使能输入 •“零”关机模式电流 •热停机和电流限制保护 •蜂窝电话和寻呼机 •手机配件 •电池供电设备 •笔记本电脑,笔记本电脑,掌上型电脑 •消费品/个人电子产品
