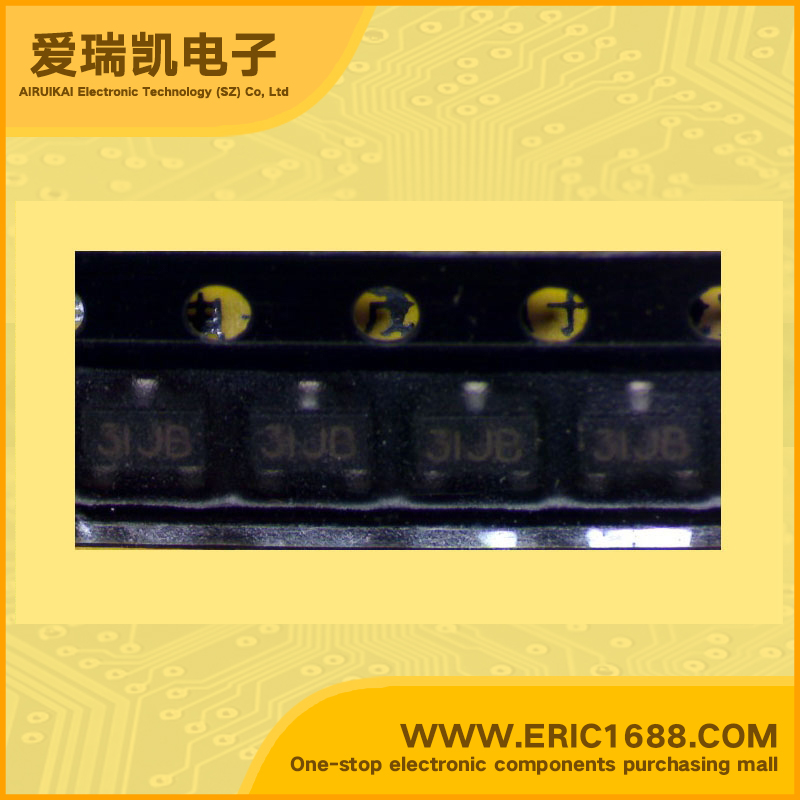

APL5301-25AC LDO Voltage Regulator 2.5V 600mV/0.6V SOT-23 marking 31JB Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6.5V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 600mV/0.6V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Low IQ, Low Dropout 300mA Fixed Voltage Regulator ；•Low Quiescent Current : 50uA (No load) • Low Dropout Voltage : 400mV (VOUT=3.0V Version @300mA) • Very low Shutdown Current : < 0.5uA • Fixed Output Voltage : 1.3V ~ 5.0V by step 0.1V increment •Stable with 1uF Output Capacitor •Stable with Aluminum, Tantalum or Ceramic Capacitors . •Reverse Current Protection •No Protection Diodes Needed •Built in Thermal Protection •Built in Current Limit Protection •Controlled Short Circuit Current : 50mA •Fast Transient Response |
| 描述与应用 | 低IQ，低压降300mA的固定电压稳压器;•低：50uA的静态电流（无负载） •低压差：400mV的（VOUT=3.0V版本@300毫安） •极低的关断电流：<0.5uA的 •固定输出电压：1.3V〜5.0V一步0.1V增量 •稳定与1uF的输出电容器 •稳定的铝，钽或陶瓷电容器。 •反向电流保护 •无需保护二极管 •内置热保护 •内置电流限制保护 •控制短路电流：50mA •快速瞬态响应 |
