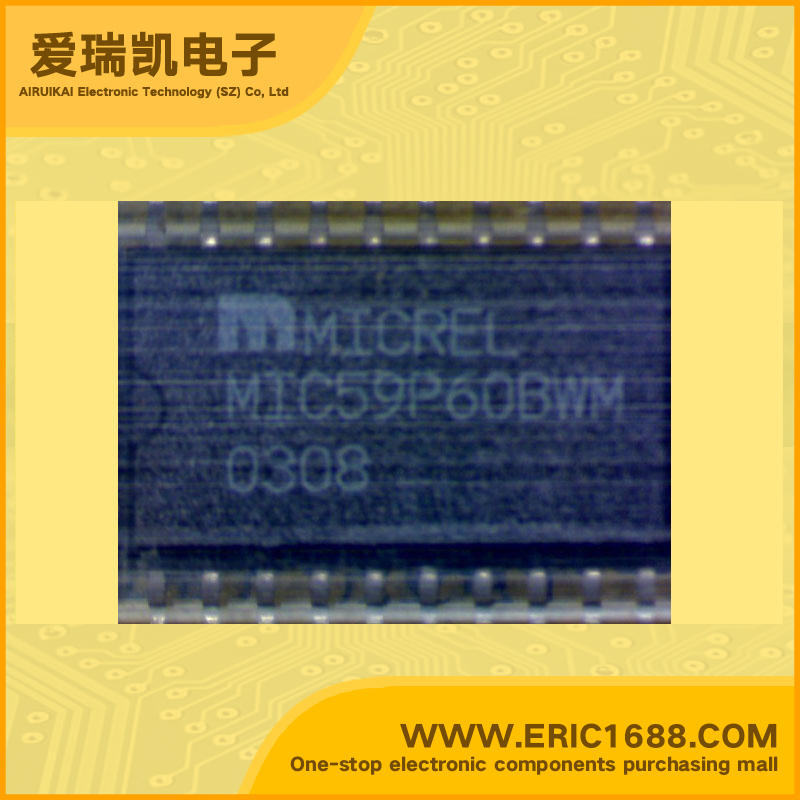

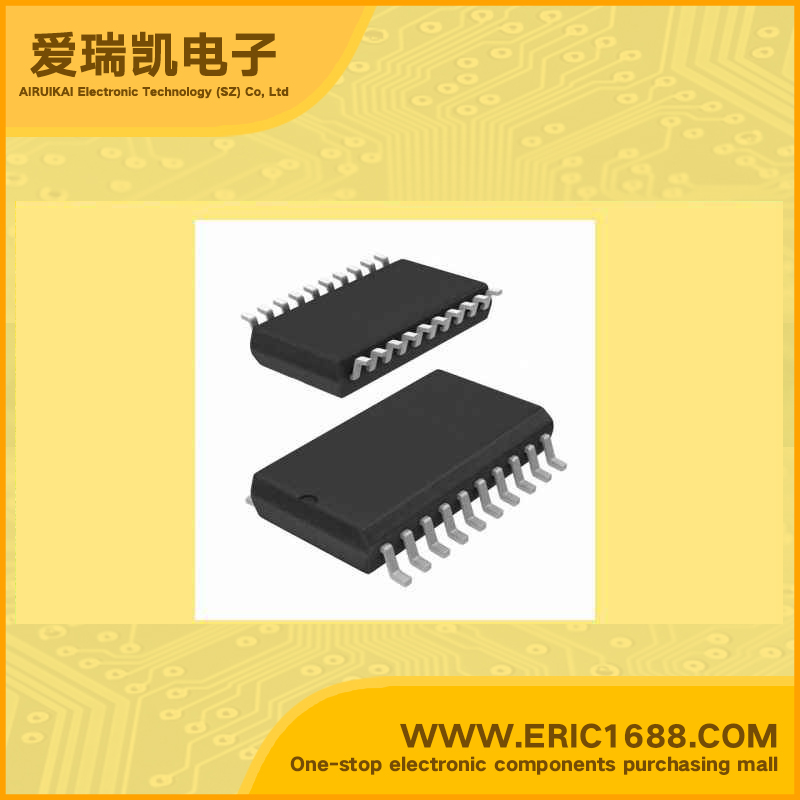

MIC59P60BWM MOSFET/Bridge Driver PMIC non-inverting 5V ~ 12V SOICW-20L marking MIC59P60BWM 8-Bit Serial-Input Protected Latched Driver
| 驱动器类型（配置/类型） Type/Configuration | 锁存驱动器 Latched Driver |
| 驱动器数量（配置数） Number of Configurations | |
| 输入类型 Input Type | 非反相 Non-Inverting |
| 导通电阻 On-State Resistance | |
| 峰值输出电流 Current - Peak | |
| 输出端数量 Number of Outputs | 8 |
| 电源电压 Voltage - Supply | 5V ~ 12V |
| Description & Applications | FEATURES • 8-Bit Serial-Input Protected Latched Driver • 3.3 MHz Minimum Data-Input Rate • Output Current Shutdown (500mA Typical) • Under Voltage Lockout • Thermal Shutdown • Output Fault Flag • CMOS, PMOS, NMOS, and TTL Compatible • Internal Pull-Up/Pull-Down Resistors • Low Power CMOS Logic and Latches • High Voltage Current Sink Outputs • Output Transient-Protection Diodes • Single or Split Supply Operation |
| 描述与应用 | 特点 •8位串行输入锁存驱动保护 •3.3 MHz最小数据输入速率 •输出电流关断电流（500mA典型） •欠压锁定 •热关断 •输出故障标志 •CMOS，PMOS，NMOS，和TTL兼容 •内部上拉或下拉电阻器 •低功耗CMOS逻辑和闩锁。 •高电压灌电流输出 •瞬态输出保护二极管 •单电源供电或拆分 |
