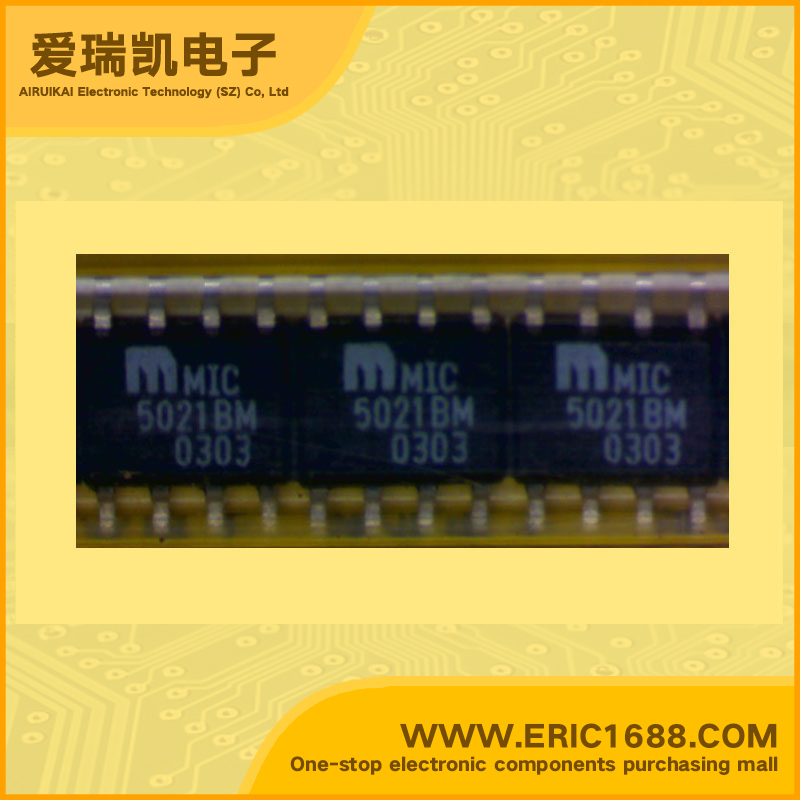

MIC5021BM MOSFET/Bridge Driver PMIC non-inverting 12V ~ 36V SOIC-08L marking MIC5021BM Current-Sensing Low-Side MOSFET Driver
| 驱动器类型（配置/类型） Type/Configuration | 高端 High Side |
| 驱动器数量（配置数） Number of Configurations | 1 |
| 输入类型 Input Type | 非反相 Non-Inverting |
| 导通电阻 On-State Resistance | |
| 峰值输出电流 Current - Peak | |
| 输出端数量 Number of Outputs | 1 |
| 电源电压 Voltage - Supply | 12V ~ 36V |
| Description & Applications | FEATURES • High-Speed High-Side MOSFET Driver • 12V to 36V operation • 550ns rise/fall time driving 2000pF • TTL compatible input with internal pull-down resistor • Overcurrent limit • Gate to source protection • Internal charge pump • 100kHz operation guaranteed over full temperature and operating voltage range • Compatible with current sensing MOSFETs • Current source drive reduces EMI Applications • Lamp control • Heater control • Motor control • Solenoid switching • Switch-mode power supplies • Circuit breaker |
| 描述与应用 | 特点 •高速高边MOSFET驱动器 •12V至36V操作 •550ns的驱动2000pF的上升/下降时间 •TTL兼容的输入，带内部上拉下拉电阻 •过流限制 •门源保护 •内部电荷泵 •100kHz的操作，保证在整个温度和工作电压范围 •兼容电流检测的MOSFET •电流源驱动器降低EMI 应用 •灯控制 •加热器控制 •电机控制 •电磁开关 •开关模式电源 •断路器 |
