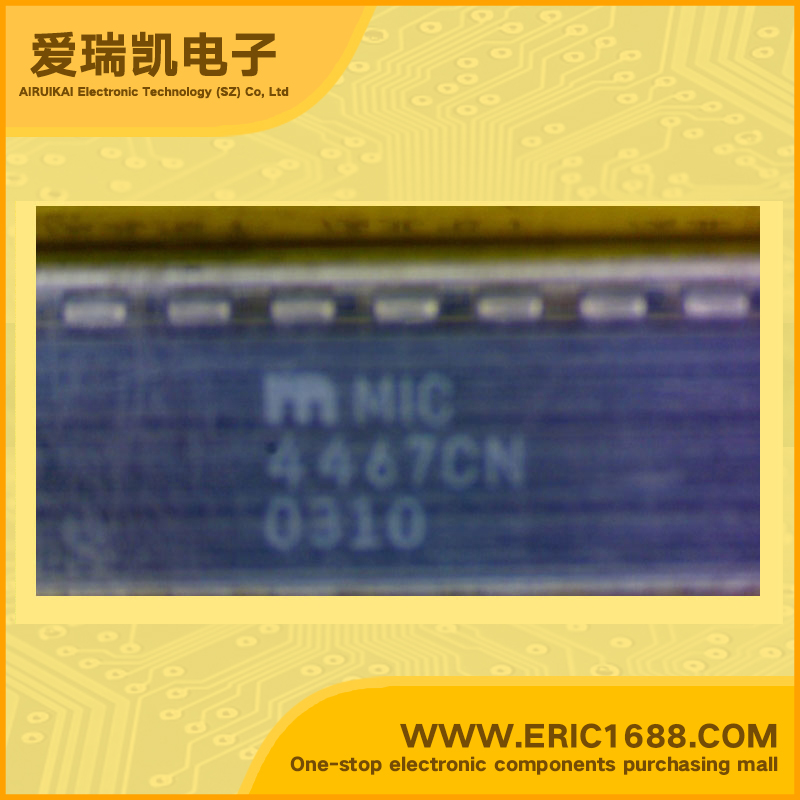

MIC4467CN MOSFET/Bridge Driver PMIC NAND 4.5V ~ 18V 1.2A PDIP-14L marking MIC4467CN General-Purpose CMOS Logic Buffer
| 驱动器类型（配置/类型） Type/Configuration | 低端 Low-Side |
| 驱动器数量（配置数） Number of Configurations | 4 |
| 输入类型 Input Type | 与非 NAND |
| 导通电阻 On-State Resistance | |
| 峰值输出电流 Current - Peak | 1.2A |
| 输出端数量 Number of Outputs | 4 |
| 电源电压 Voltage - Supply | 4.5V ~ 18V |
| Description & Applications | FEATURES • Quad 1.2A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS • Built using reliable, low power CMOS processes • Latchproof. Withstands 500mA Inductive Kickback • 3 Input Logic Choices • Symmetrical Rise and Fall Times ............................25ns • Short, Equal Delay Times .......................................75ns • High Peak Output Current ....................................... 1.2A • Wide Operating Range .................................. 4.5 to 18V • Low Equivalent Input Capacitance (typ) .................. 6pF • Inputs = Logic 1 for Any Input From 2.4V to VS • ESD Protected Applications • General-Purpose CMOS Logic Buffer • Driving All 4 MOSFETs in an H-Bridge • Direct Small-Motor Driver • Relay or Peripheral Drivers • Dual Differential Output Power Drivers • CCD Driver • Pin-Switching Network Driver |
| 描述与应用 | 特点 •四1.2A峰值低侧MOSFET驱动器双极/ CMOS/ DMOS •内置使用可靠，低功耗的CMOS工艺 •Latchproof。可承受500mA的电感的回扣 •3输入逻辑的选择 •对称的上升和下降时间............................为25ns •短，平等延迟时间.......................................75ns的 •高峰值输出电流....................................... 1.2A •宽工作电压范围.................................. 4.5至18V •低等效输入电容（典型值）.................. 6PF •输入任何从2.4V输入到VS=逻辑1 •ESD保护 应用 •通用CMOS逻辑缓冲器 •所有驱动的MOSFET H桥 •小电机驱动器 •继电器或外设驱动器 •双差分输出功率驱动器 •CCD驱动器 •引脚交换网络驱动器 |
