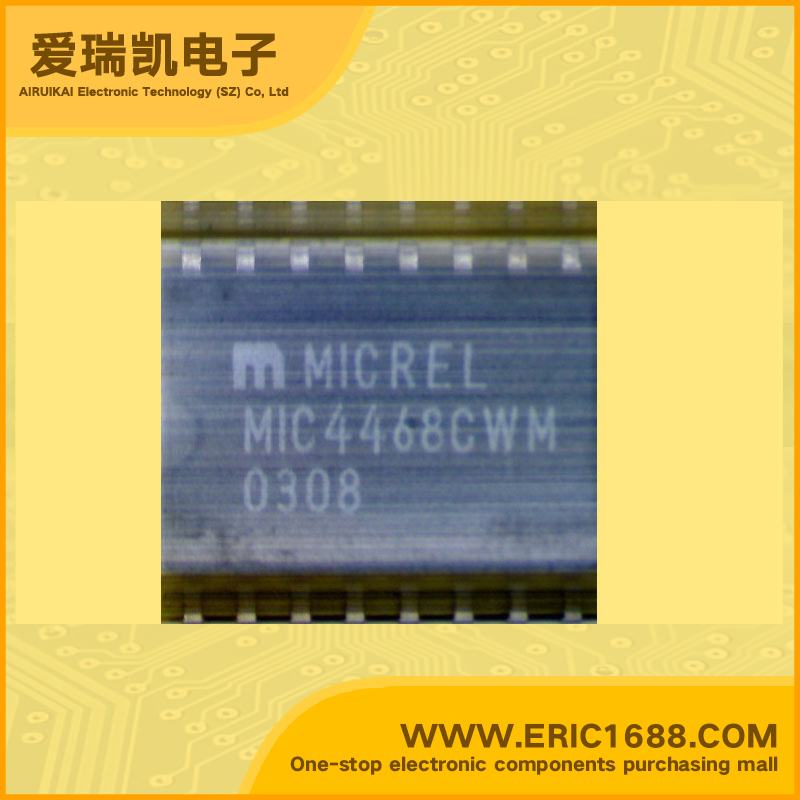

MIC4468CWM MOSFET/Bridge Driver PMIC AND 4.5V ~ 18V 1.2A SOICW-16L marking MIC4468CWM General-Purpose CMOS Logic Buffer

Hot selling goods

Product description
驱动器类型(配置/类型)
Type/Configuration
低端 Low-Side
驱动器数量(配置数)
Number of Configurations
4
输入类型
Input Type
与 AND
导通电阻
On-State Resistance
峰值输出电流
Current - Peak
1.2A
输出端数量
Number of Outputs
4
电源电压
Voltage - Supply
4.5V ~ 18V
Description & ApplicationsFEATURES • Quad 1.2A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS • Built using reliable, low power CMOS processes • Latchproof. Withstands 500mA Inductive Kickback • 3 Input Logic Choices • Symmetrical Rise and Fall Times ............................25ns • Short, Equal Delay Times .......................................75ns • High Peak Output Current ....................................... 1.2A • Wide Operating Range .................................. 4.5 to 18V • Low Equivalent Input Capacitance (typ) .................. 6pF • Inputs = Logic 1 for Any Input From 2.4V to VS • ESD Protected Applications • General-Purpose CMOS Logic Buffer • Driving All 4 MOSFETs in an H-Bridge • Direct Small-Motor Driver • Relay or Peripheral Drivers • Dual Differential Output Power Drivers • CCD Driver • Pin-Switching Network Driver
描述与应用特点 •四1.2A峰值低侧MOSFET驱动器双极/ CMOS/ DMOS •内置使用可靠,低功耗的CMOS工艺 •Latchproof。可承受500mA的电感的回扣 •3输入逻辑的选择 •对称的上升和下降时间............................为25ns •短,平等延迟时间.......................................75ns的 •高峰值输出电流....................................... 1.2A •宽工作电压范围.................................. 4.5至18V •低等效输入电容(典型值).................. 6PF •输入任何从2.4V输入到VS=逻辑1 •ESD保护 应用 •通用CMOS逻辑缓冲器 •所有驱动的MOSFET H桥 •小电机驱动器 •继电器或外设驱动器 •双差分输出功率驱动器 •CCD驱动器 •引脚交换网络驱动器
