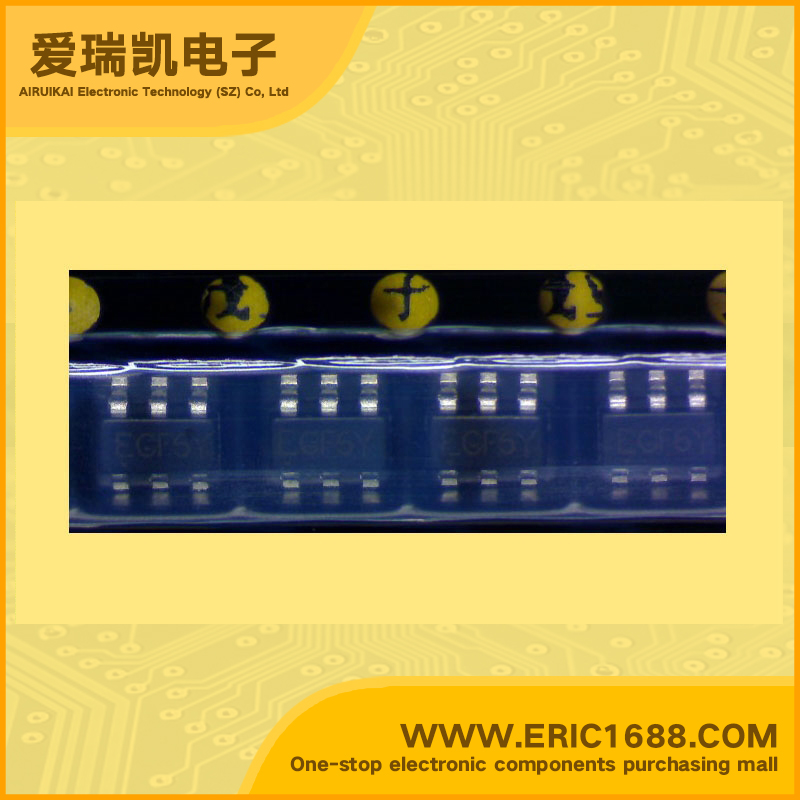

AAT3223IGU-1.8-T1 LDO Voltage Regulator 1.8V With Enable Pin SOT-163/SOT23-6 marking EGF Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~6V
输出电压VOUT
Voltage - Output
1.8V
输出电流Io
Current - Output
250mA/0.25A
最大压降VDO
Voltage - Dropout
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
667mW/0.667W
Description & Applications250mA NanoPower™ LDO Linear Regulator with Power-OK;•1.1µA Quiescent Current • 250mA Output Current • Low Dropout: 190mV (typical) • High Accuracy: ±2% • Current Limit Protection • Over-Temperature Protection • Extremely Low Power Shutdown Mode • Low Temperature Coefficient • Stable Operation With Virtually Any Output Capacitor Type • Active High Enable Pin • 4kV ESD • 6-pin SOT23 Package • Cellular Phones • Digital Cameras • Handheld Electronics • Notebook Computers • PDAs • Portable Communication Devices • Remote Controls
描述与应用250毫安纳功率LDO 线性稳压电源就绪;•1.1μA静态电流 •250mA输出电流 •低压差:190mV(典型值) •高准确度:±2% •电流限制保护 •过温保护 •极低功耗关断模式 •低温度系数 •稳定运行几乎任何输出 电容式 •高电平有/yes效使能引脚 •4KV ESD •6引脚SOT23封装 •蜂窝电话 •数码相机 •手持式电子 •笔记本电脑 •掌上电脑 •便携式通信设备 •远程控制
