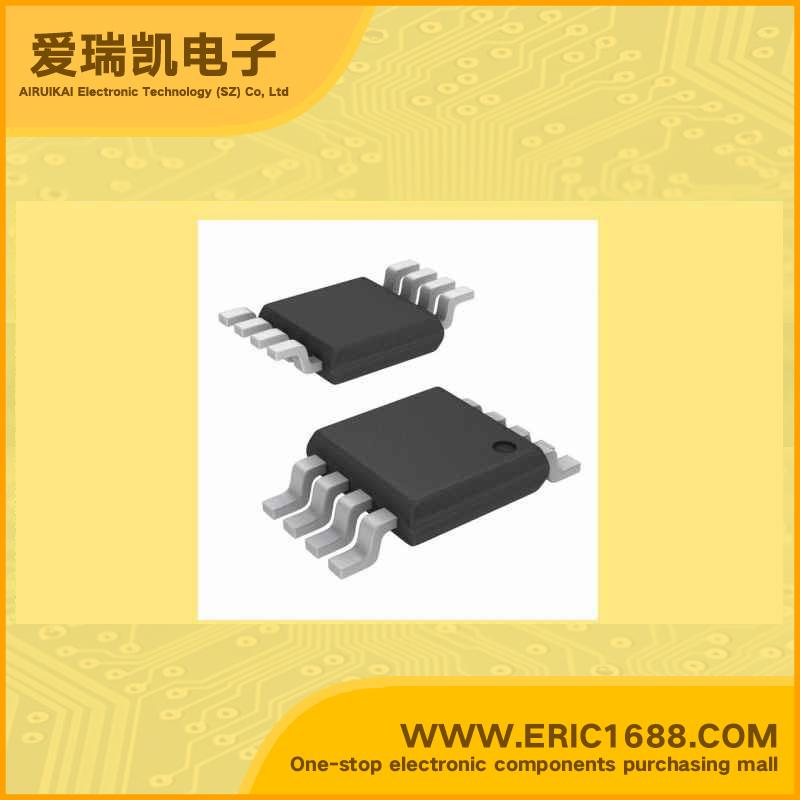

MIC4427BMM MOSFET/Bridge Driver PMIC non-inverting 4.5V ~ 18V 1.5A MSOP-08L marking high output current
| 驱动器类型（配置/类型） Type/Configuration | 低端 Low-Side |
| 驱动器数量（配置数） Number of Configurations | 2 |
| 输入类型 Input Type | 非反相 Non-Inverting |
| 导通电阻 On-State Resistance | |
| 峰值输出电流 Current - Peak | 1.5A |
| 输出端数量 Number of Outputs | 2 |
| 电源电压 Voltage - Supply | 4.5V ~ 18V |
| Description & Applications | FEATURES • Dual 1.5A-Peak Low-Side MOSFET Driver • bipolar/CMOS/DMOS construction • Latch-up protection to >500mA reverse current • 1.5A-peak output current • 1.5V to 18V operating range • switches 1000pF in 25ns • <40ns typical delay • Delay times consistent with in supply voltage change • Matched rise and fall times • logic input independent of supply voltage • Low equivalent 6pF input capacitance • 7Ω output impedance • dual Inverting,dual noninverting, and inverting/noninverting configurations |
| 描述与应用 | 特点 •双1.5A峰值低侧MOSFET驱动器 •双极/ CMOS/ DMOS建设 •闭锁保护>500mA的逆向电流 •1.5A峰值输出电流 •1.5V至18V工作范围 •25ns的开关1000pF的 •<40ns的典型延迟 •延迟时间的一致，在电源电压变化 •匹配的上升和下降时间 •逻辑输入与电源电压无关 •低等效的6PF输入电容 •7Ω输出阻抗 •双反相，双同相/同相和反相配置 |
