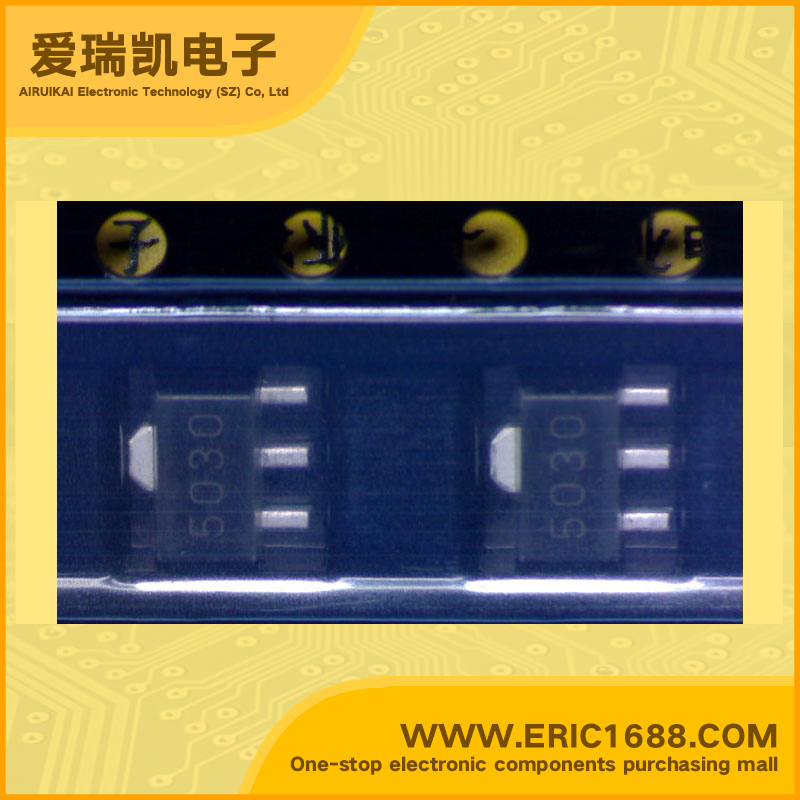

RF amplifier ECG009B-500 SOT-89 marking 5030
| 频率 Frequency | 2500MHz |
| P1dB | 24dBm |
| 增益 Gain | 14.5dB |
| 噪声系数 Noise Figure | 6.5dB |
| RF 类型 RF Type | Cellular, PCS, WLL |
| 电源电压 Voltage - Supply | 6.0V |
| 电源电流 Current - Supply | 150mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES •BROADBAND HIGH OIP3 AMPLIFIER •DC to 2500 MHz •41 dBm Typical OIP3 at 1900 MHz •Highly Reliable InGaP HBT •19.0 dB Typical Gain at 900 MHz •24.0 dBm Typical P1dB at 1900 MHz •24.0 dBm Typical P1dB at 2170 MHz •5.7dB Typical noise figure at 900MHz •Excellent Stability Applications •Multi-carrier Systems •High Linearity Amplifiers •Cellular, PCS, WLL |
| 描述与应用 | 特点 •宽带高OIP3放大器 •DC到2500 MHz •在1900 MHz41 dBm的OIP3典型 •高度可靠的InGaP HBT •19.0 dB典型增益在900 MHz •24.0 dBm典型的P1dB在1900 MHz •24.0 dBm典型的P1dB2170兆赫 •在900MHz5.7分贝典型噪声系数 •出色的稳定性 应用 •多载波系统 •高线性度放大器 •蜂窝，PCS，WLL |
