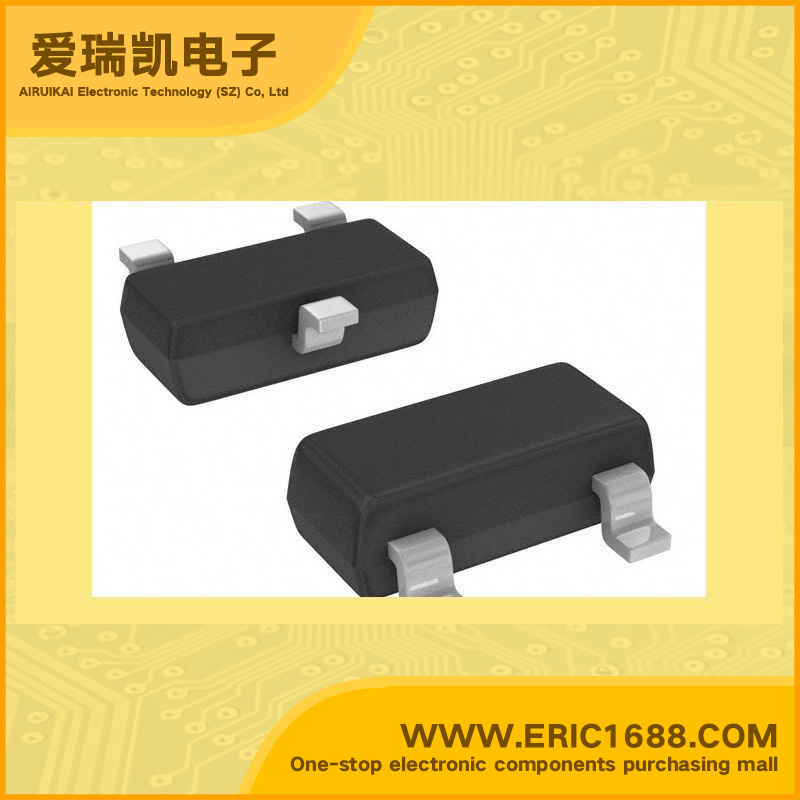

PDTD123YT NPN Bipolar Digital Transistor (BRT) 50V 500mA/0.5A 2.2k 10k gain70 SOT-23/SC-59 marking W7X
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 500mA/0.5A |
| 基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.22 |
| 直流电流增益hFE DC Current Gain(hFE) | 70 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.25W /250mW |
| Description & Applications | FEATURES Built-in bias resistors Reduces component count Simplifies circuit design Reduces pick and place costs 500 mA output current capability ±10 % resistor ratio tolerance |
| 描述与应用 | 特性 内置偏置电阻 减少了元件数量 简化电路设计 减少取放成本 500 mA的输出电流能力 电阻比例容差±10％ |
