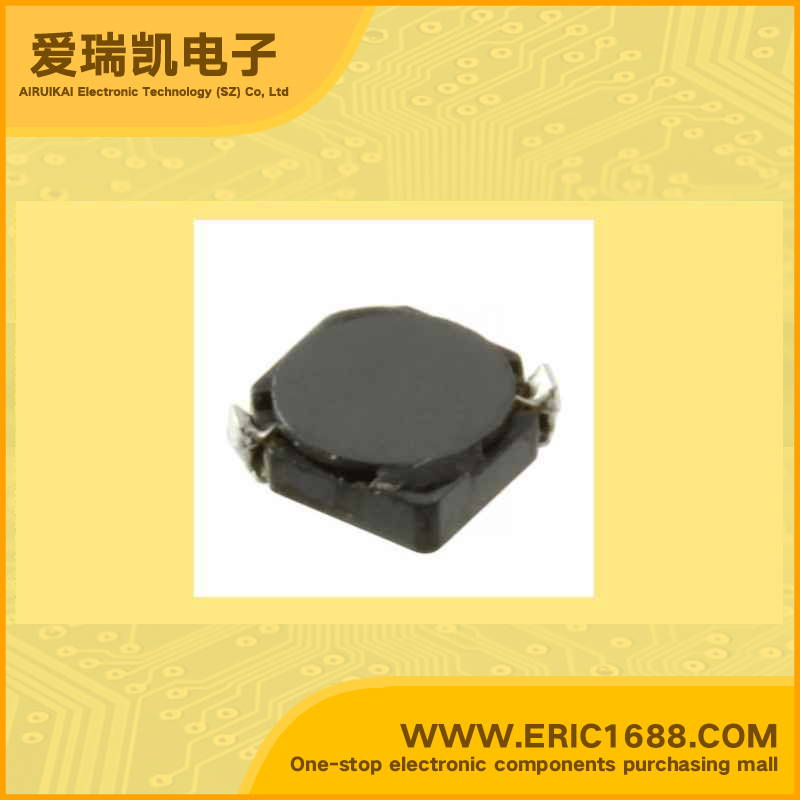

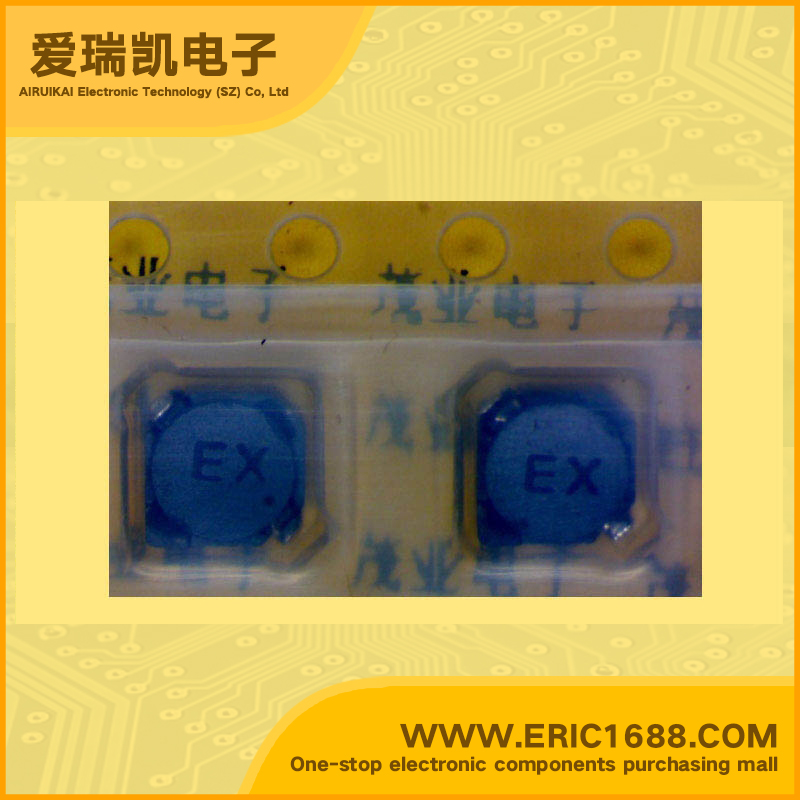

power conductor CDRH3D11NP-100NC 10uH 3M-100

Hot selling goods

Product description
Q值
Q Value
电感值
Inductance
10uH
误差
Tolerance
±30%
额定电流
Current Rating
280mA
饱和电流
Current - Saturation
DC电阻DCR
DC Resistance (DCR)
0.24Ω/Ohm
Description & ApplicationsProduct Description ・4.0×4.0mm Max.(L×W),1.2mm Max.Height. ・Inductance range: 2.7~39μH. ・Rated current range: 0.14~0.53A. Feature ・Magnetically shielded construction. ・Storage temperature range: -40℃~+105℃ Operating temperature range: -40℃~+105℃ (Including coil’s self temperature rise). ・Ideally used in Mobilephone,PDA,MP3,DSC/DVC,Portable DVD, etc as DC-DC converter inductors. ・RoHS compliance and Halogen Free.
描述与应用产品描述 ·4.0×4.0毫米最大(长×宽),1.2毫米最大高度。 ·电感值范围:2.7〜39μH。 ·额定电流范围:0.14〜0.53A。 特点 ·磁屏蔽结构。 ·存储温度范围:-40℃〜+105℃ 工作温度范围:-40℃〜+105℃ (包括线圈自温升)。 ·适用于手机,PDA,MP3,数码相机/摄像机,便携式DVD,DC-DC转换器,电感器等。 ·符合RoHS标准,不含卤素。
