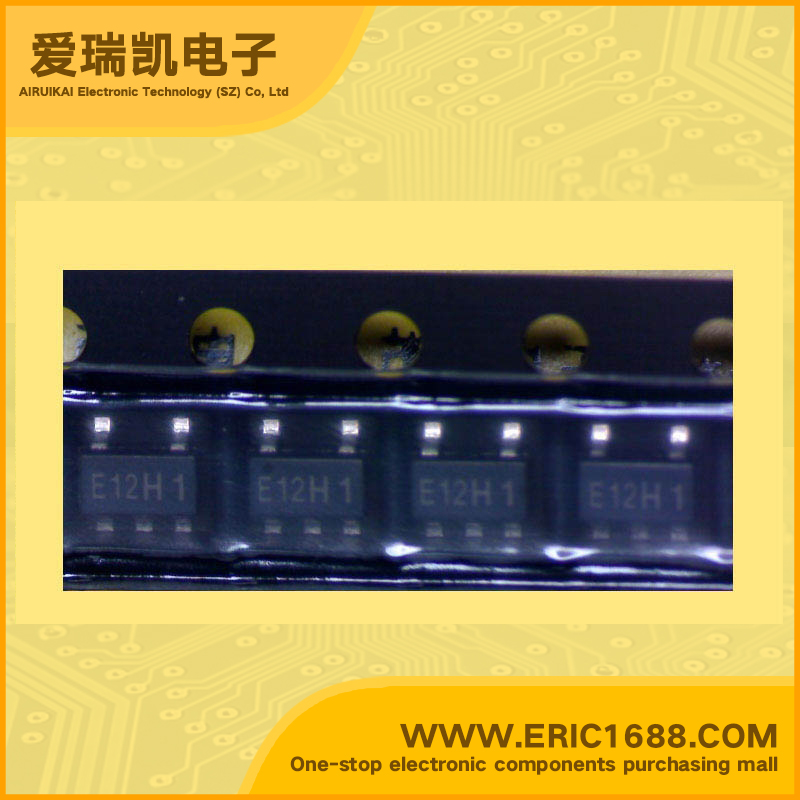

MM3271CNRE LDO Voltage Regulator 1.2V 120mV/0.12V SOT-153/SOT-25A/SOT23-5 marking E12 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 1.2~6V |
| 输出电压VOUT Voltage - Output | 1.2V |
| 输出电流Io Current - Output | 1mA |
| 最大压降VDO Voltage - Dropout | 120mV/0.12V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | CMOS Regulator ;•Input Voltage Range 1.2~6V •Output Voltage Range 0.8~5.0V • Output Voltage accuracy VOUT±2% • Maximum Output Current 150mA •Supply Current 0.8µA typ. (no Load Input Current) 0.1µA typ. (OFF) •Output Capacitor 0.1µF •Dropout Voltage 30mV Typ (Io=1mA) • Chip enable function High: ON, Low: OFF • Output Short-Circuit Current 60mA |
| 描述与应用 | CMOS稳压器;•输入电压范围1.2〜6V •输出电压范围0.8〜5.0V •输出电压VOUT精度±2％ •最大输出电流150mA •0.8μA典型电源电流（无负载输入电流） 0.1μA（典型值）（OFF） •输出电容0.1μF •漏失电压30mV的类型（IO=1毫安） •芯片使能功能：开，低：关 •输出短路电流60mA |
