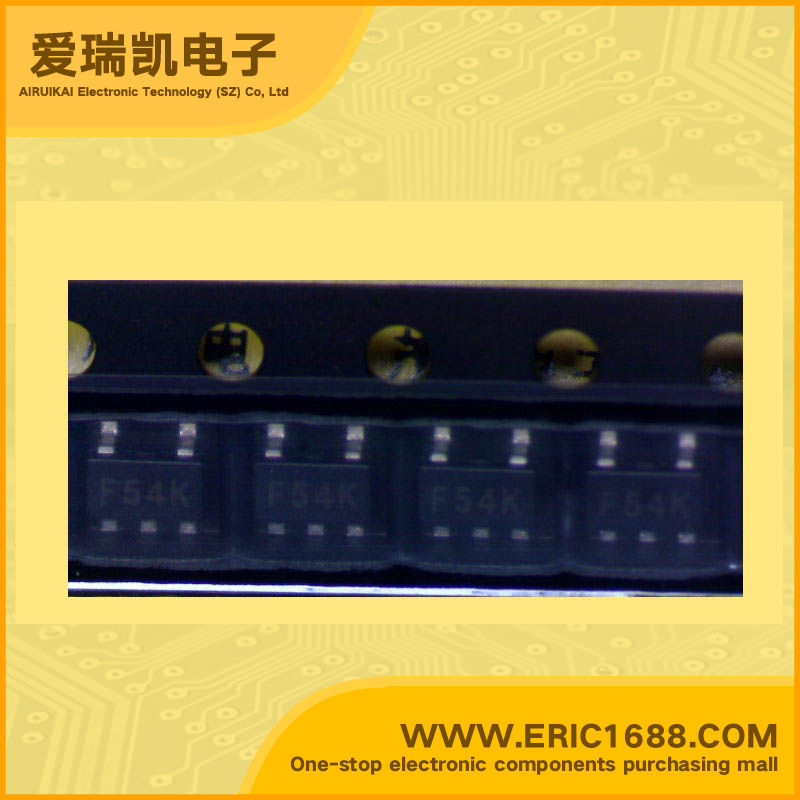

R1111N251B LDO Voltage Regulator 2.5V 240mV/0.24V SOT-153/SOT23-5 marking F54 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 9V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 240mV/0.24V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 250mW/0.25W |
| Description & Applications | LOW NOISE 150mA LDO REGULATOR;• Ultra-Low Supply Current.TYP. 35µA •Standby ModeTYP. 0.1µA • Low Dropout Voltage TYP. 0.2V(IOUT=100mA) •High Ripple RejectionYP. 70dB(f=1kHz) •Low Temperature-Drift Coefficient of •Output VoltageTYP. ±100ppm/°C •Excellent Line Regulation TYP. 0.05%/V •High Output Voltage Accuracy±2.0% •Excellent Line Transient Response and Load Transient Response •Output VoltageStepwise setting with a step of 0.1V in the range of 1.5V to 5.0V is possible •Power source for cellular phones such as GSM,CDMA and various kind of PCSs. •Power source for electrical appliances such as cameras, VCRs and camcorders. •Power source for battery-powered equipment |
| 描述与应用 | 低噪声150MA LDO稳压器;•超低电源Current.TYP的。 35μA •待机ModeTYP。 0.1μA •低压差电压TYP。 0.2V（IOUT100毫安） •纹波RejectionYP高。 70分贝（F=1kHz时） •低温度漂移系数 •输出VoltageTYP。温度系数±100ppm/°C •卓越的线路调整TYP。 0.05％/ V •高输出电压精度±2.0％？ •出色的线路瞬态响应和负载瞬态响应 •输出VoltageStepwise的设置在1.5V的范围内，以每步0.1V到5.0V的 可能 •电源蜂窝电话如GSM，CDMA和各类的PCS。 •电器如摄像机，录像机和摄像机的电源。 •用于电池供电设备的电源 |
