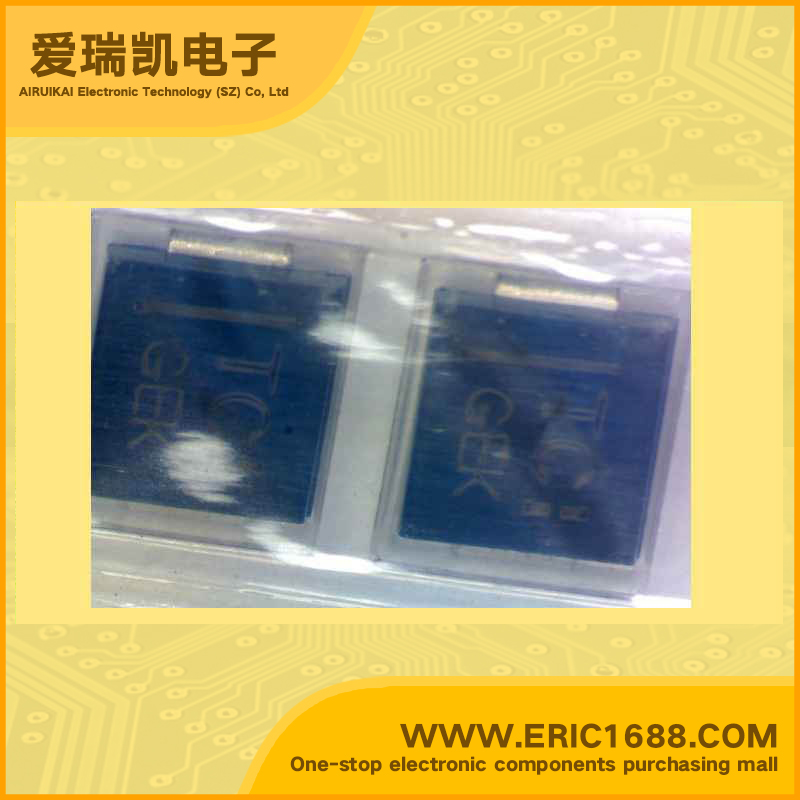

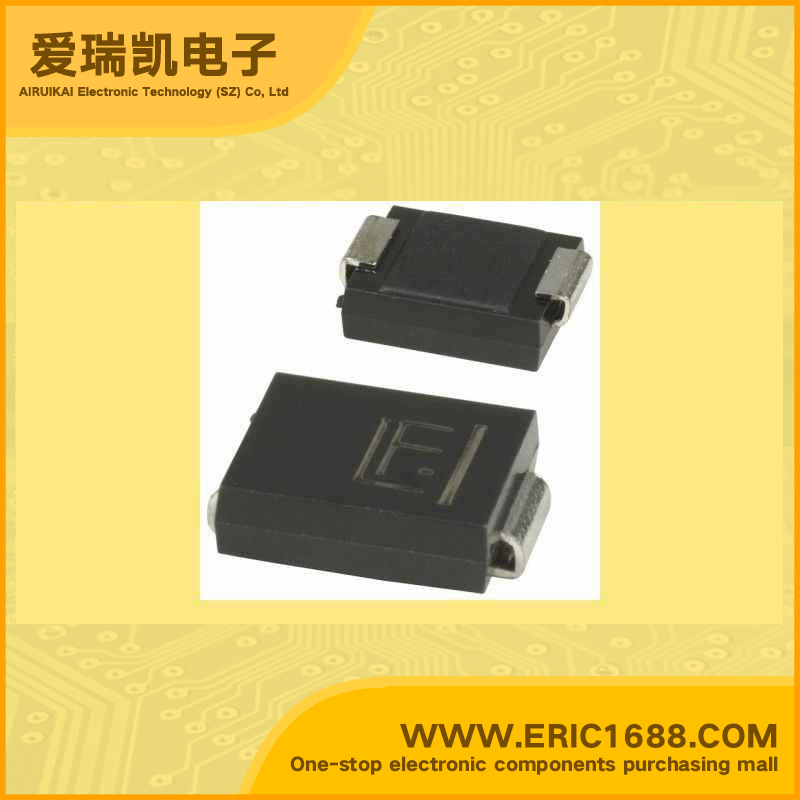

SMCJ14A-23-T71 TVS/ESD 14V 64.7A DO-214AB/SMC-14V marking GEK
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 14V |
| 反向击穿电压VBR Breakdown Voltage | 16.4V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 1500W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 64.7A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features • 1500W Surface Mount Transient Voltage Suppressor • Stand-off voltage from 5.0 to 170 volts • Glass passivated junction • 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate(duty cycle): 0.01% • Fast response time: typically less than 1.0ps from 0v to VBR • Low incremental surge resistance, excellent clamping capability • High temperature soldering guaranteed: 250°C/10 seconds at terminals • This series is UL recognized under component index. File number E315008 • RoHS Compliant |
| 描述与应用 | 特点 •1500W表面贴装瞬态电压抑制器•待机电压从5.0到170伏特 •玻璃钝化结 •1500W峰值脉冲功率能力与10/1000μS波形，重复率（占空比）：0.01％ •快速响应时间：通常小于1.0PS从0V到VBR •低增量浪涌性，优良的钳位能力 •高温焊接保证：250°C/10秒钟码头 该系列产品是根据成份指数UL认可。文件号E315008 •符合RoHS标准 |
