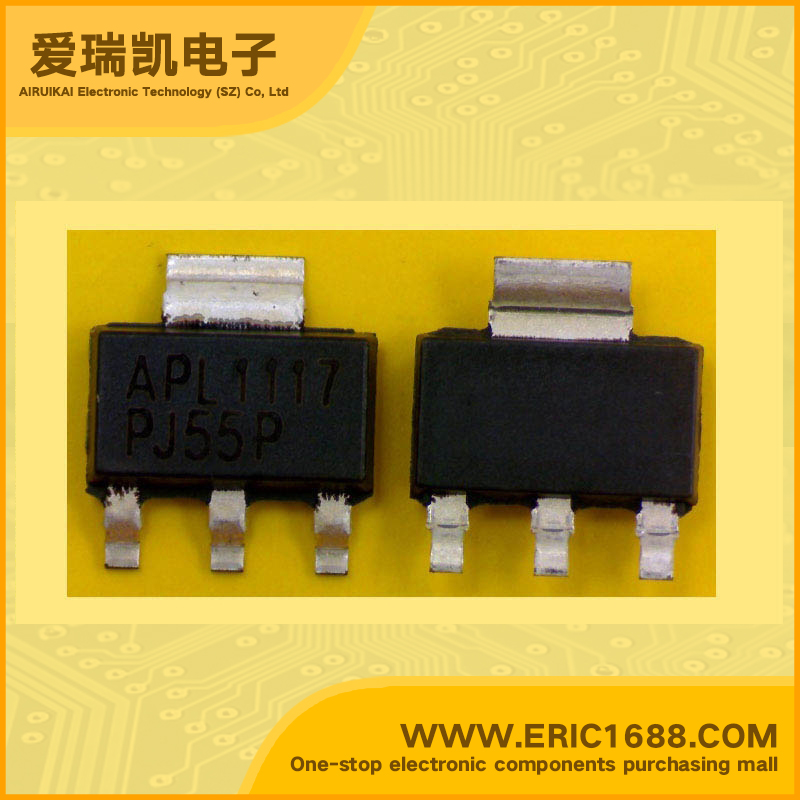

APL1117VC-TRL LDO Voltage Regulator Adjustable 1.1V SOT-223 marking APL1117 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
15V
输出电压VOUT
Voltage - Output
可调/adj
输出电流Io
Current - Output
1A
最大压降VDO
Voltage - Dropout
1.1V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & Applications1A Low Dropout Fast Response Positive Adjustable Regulator and Fixed ;•Guaranteed Output Voltage Accuracy within 2% •Fast Transient Response • Load Regulation : 0.1% Typ. •Line Regulation : 0.03% Typ. •Low Dropout Voltage : 1.1V Typ. at IOUT =1A •Current Limit : 1A Typ. at TJ=25°C •On-Chip Thermal Limiting : 150°C Typ. •Adjustable Output : 1.25~10.7V •Standard 3-pin TO-220, TO-252, TO-263 and •Active SCSI Terminators • Low Voltage Logic Supplies •Battery-Powered Circuitry •Post Regulator for Switching Power Supply
描述与应用1A低压差快速响应正可调稳压器和固定;•保证输出电压精度在2%以内 •快速瞬态响应 •负载调整率:0.1%典型值。 线路调整率:0.03%典型。  •低压差电压:1.1V典型。 IOUT=1A •电流限制:1A典型。在TJ= 25°C •片上热限制:150°C典型值。 •可调输出:1.25〜10.7V •标准的3引脚TO-220,TO-252,TO-263和 •活跃SCSI终结者 •低电压逻辑电源 •电池供电电路 •后稳压开关电源
