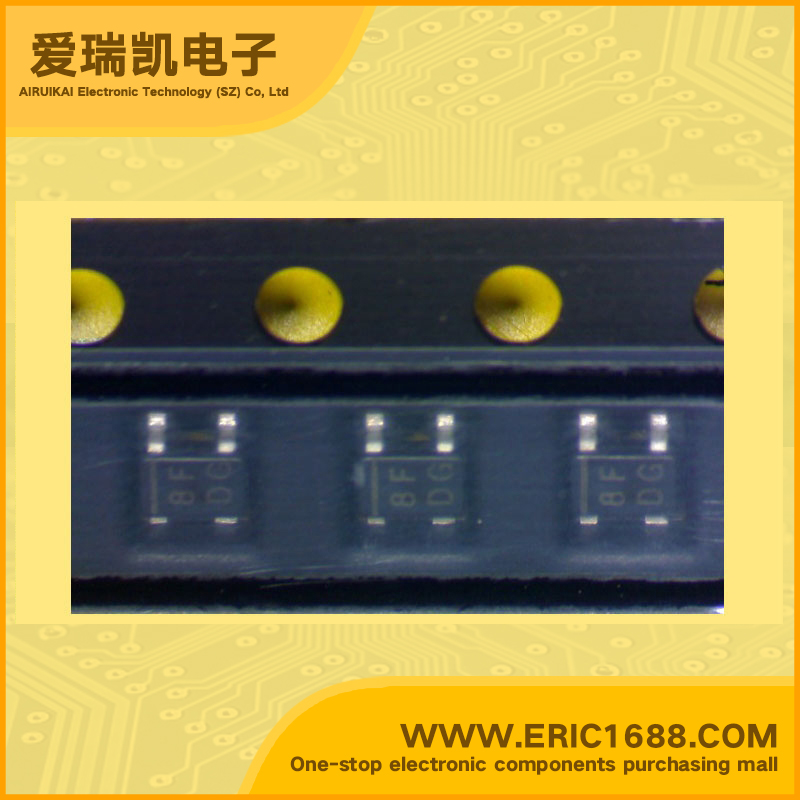

RQ5RW35BA LDO Voltage Regulator 3.5V 40mV With Enable Pin SOT-343/SC-82 marking 8F Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
9V
输出电压VOUT
Voltage - Output
3.5V
输出电流Io
Current - Output
1mA
最大压降VDO
Voltage - Dropout
40mV
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
150mW/0.15W
Description & ApplicationsSMALL PACKAGE VOLTAGE REGULATOR ;tra-Low Supply Current TYP. 1.5µA • Standby Current TYP. 0.1µA • Dropout Voltage TYP . 40mV (IOUT=1mA, RQ5RW30A/B) • Low Temperature-Drift Coefficient of •Output Voltage TYP. ±100ppm/˚C • Excellent Line Regulation TYP. 0.05%/V • High Accuracy Output Voltage ±2.0% • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Precision voltage references
描述与应用小封装电压稳压器;•超低电源电流的典型值。 1.5μA •待机电流典型值。 0.1μA •漏失电压TYP。 40MV(IOUT=1毫安,RQ5RW30A/ B) •低的温度-漂移系数的 •输出电压典型值。温度系数±100ppm/˚C •卓越的线路调整TYP。 0.05%/ V •高输出电压精度±2.0% •电源源用于电池-动力的的设备。 •电源,摄像机,录像机,摄像机,手持音频设备和手持式通信设备。 •精密电压基准
