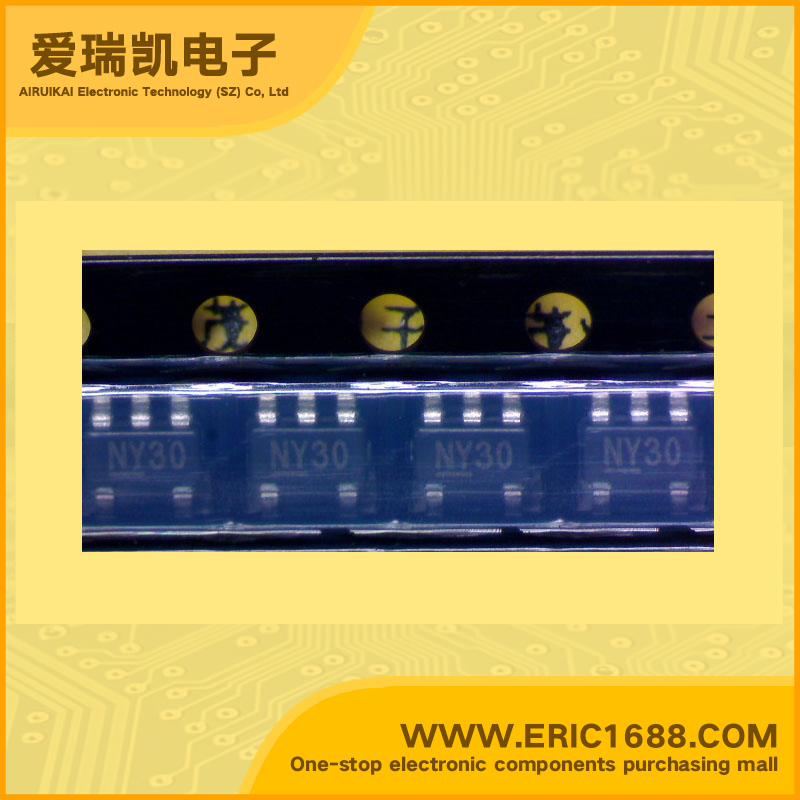

MIC5259-3.0YD5TR LDO Voltage Regulator 3V 300mV/0.3V With Enable Pin SOT-153/SOT23-5 marking NY30 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.7~6V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 300mA High PSRR, Low Noise µCap CMOS LDO ;•input voltage range: 2.7V to 6.0V • PSRR = 70dB @ 1kHz • Low output noise: 30µV(rms) • Stability with ceramic output capacitors • Low-dropout: 300mV @ 300mA • High-output accuracy: – 1.5% initial accuracy – 3.0% over temperature • Low quiescent current: 105µA • Tight load and line regulation • TTL-Logic-controlled enable input • “Zero” off-mode current • Thermal shutdown and current limit protection • Cellular phones and pagers • Cellular accessories • Battery-powered equipment • Laptop, notebook, and palmtop computers • Consumer/personal electronics • Industrial portable electronics • PC peripherals |
| 描述与应用 | 300mA的高电源抑制比（PSRR），低噪声CMOS LDOμCap;•输入电压范围：2.7V至6.0V •PSRR=70分贝@1KHZ •低输出噪声：30μV（RMS） •与陶瓷输出电容的稳定性 •低压差：300mV的@300毫安 •高输出精度： - 1.5％的初始精度 - 3.0％温度 •低静态电流：105μA •精确的负载和线路调节 •TTL逻辑控制使能输入 •“零”关机模式电流 •热停机和电流限制保护 •蜂窝电话和寻呼机 •手机配件 •电池供电设备 •笔记本电脑，笔记本电脑，掌上型电脑 •消费品/个人电子产品 •工业便携式电子产品 •PC外设 |
