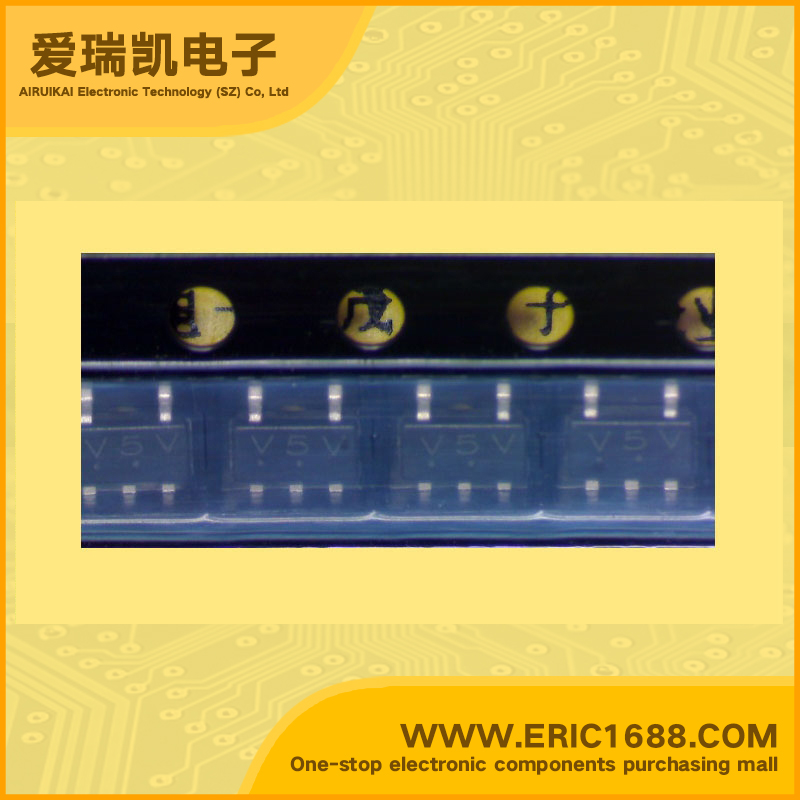

Integrated Circuit（IC） inverter MC74VHC1G04DTT1G SOT-153/SOT23-5/TSOP5/SC59?5 marking VS2
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA，8mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.5ns @ 4.5V~5.5V，50pF |
| Description & Applications | Single inverter；Features High Speed: tPD = 3.5ns (Typ) @ VCC = 5V Low Internal Power Dissipation: ICC = 2µA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced propagation delays Balanced propagation delays Pin and Function Compatible with Other Standard Logic Families Chip complexity:FETs=105 |
| 描述与应用 | 单逆变器；特性 高速：TPD =3.5ns的（典型值）@ VCC= 5V 内部功耗：ICC=2μA（最大值）@ TA= 25°C 掉电保护的输入端 平衡传输时延 平衡传输时延 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：场效应管= 105 |
