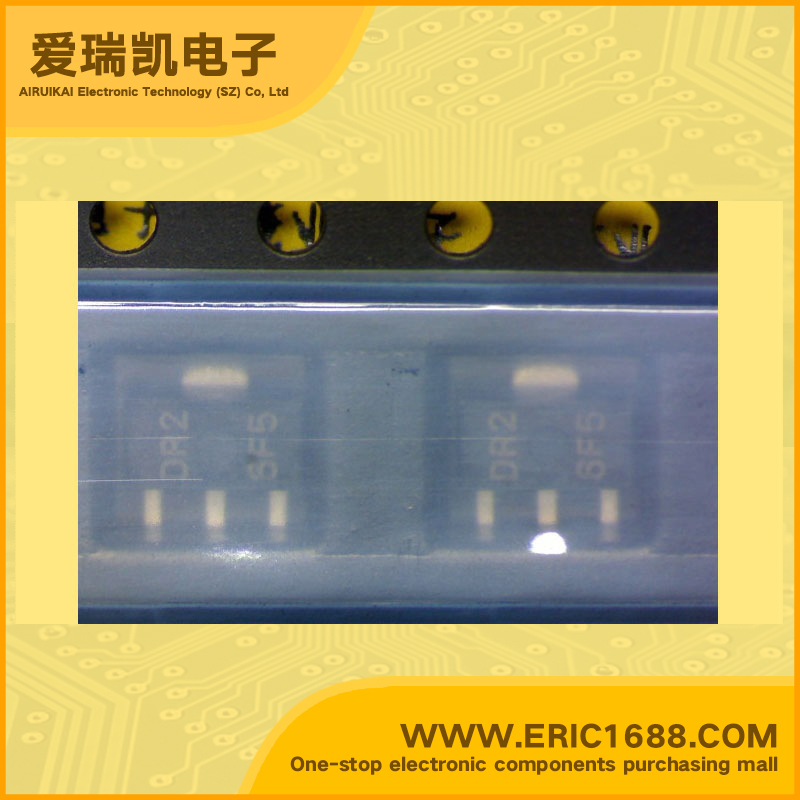

XC6214P332PR LDO Voltage Regulator 3.3V 750mV/0.75V SOT-89 marking DR2 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.3~6.5V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 500mA/0.5A |
| 最大压降VDO Voltage - Dropout | 750mV/0.75V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | 500mA output current, high speed LDO regulators Thermal shutdown function, ceramic capacitor compatible •Maximum Output Current : More than 500mA (800mA limit) •Dropout Voltage : 500mV @ IOUT = 500mA (VOUT=3.3V) •Operating Voltage Range : 1.8V ~ 6.0V •Output Voltage : 1.5V, 1.8V, 2.5V, 3.3V, (standard) •Other voltages between 1.5V to 5.0V (semi-custom) •High Accuracy : Setting voltage accuracy ±2% •Low Power Consumption •Ripple Rejection Rate : 8μA (TYP.) : 40dB @ 1kHz •Operating Temperature Range : - 40℃ ~ 85℃ |
| 描述与应用 | 500mA输出电流，高速LDO稳压器 热关断功能，陶瓷电容器兼容 •最大输出电流大于500mA（800mA的极限） •漏失电压：500mV的@ I OUT =电流500mA（VOUT= 3.3V） •工作电压范围：1.8V〜6.0V •输出电压：1.5V，1.8V，2.5V，3.3V，（标准） 其他电压在1.5V至5.0V之间（半定制） •高精度：设定电压精度±2％ •低功耗 纹波抑制率：8μA（典型值）：40分贝@1KHZ •工作温度范围： - 40℃〜85℃ |
