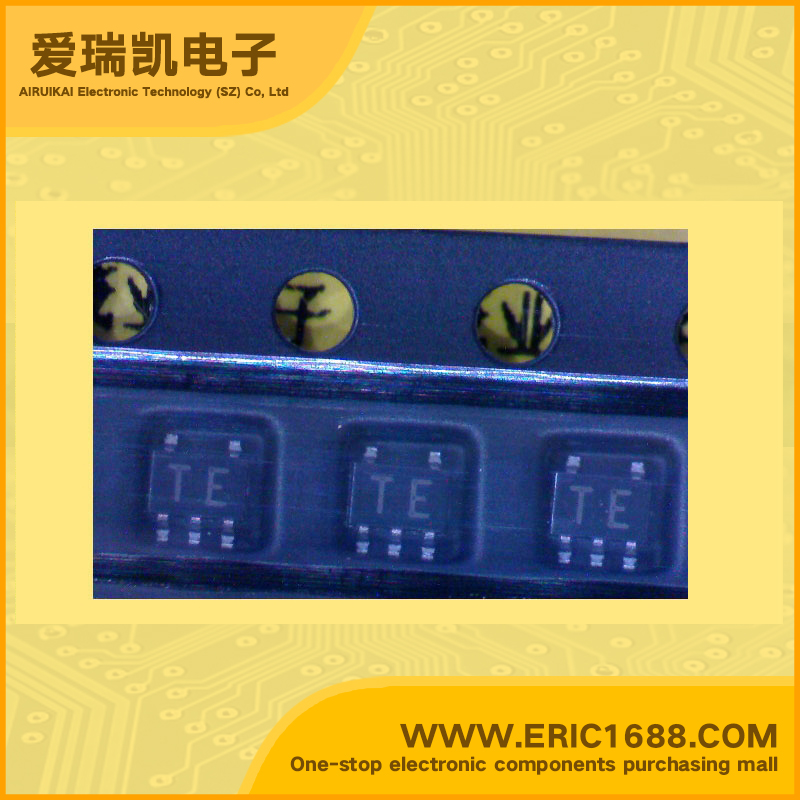

Integrated Circuit（IC） AND gate KIC7SZ08FU SOT-353/USV marking TE
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.8V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.7V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.7ns @ 4.5V，50pF |
| Description & Applications | 2-input AND Gate；Features High Output Drive : 24mA (Typ.) @VCC=3V Super High Speed Operation : tPD=2.7ns(Typ.) @VCC=5V, 50pF Operation Voltage Range : VCC(opr)=1.8 -5.5V Supply Voltage Data Retention : VCC=1.5 -5.5V 5V Tolerant Function |
| 描述与应用 | 双输入与门;特性 高输出驱动器：24毫安（典型值）@ VCC= 3V 超高速操作：TPD=2.7ns（典型值）@ VCC= 5V，50PF VCC（OPR）=1.8-5.5V工作电压范围： 电源电压数据保存：VCC=1.5-5.5V 5V容错功能 |
