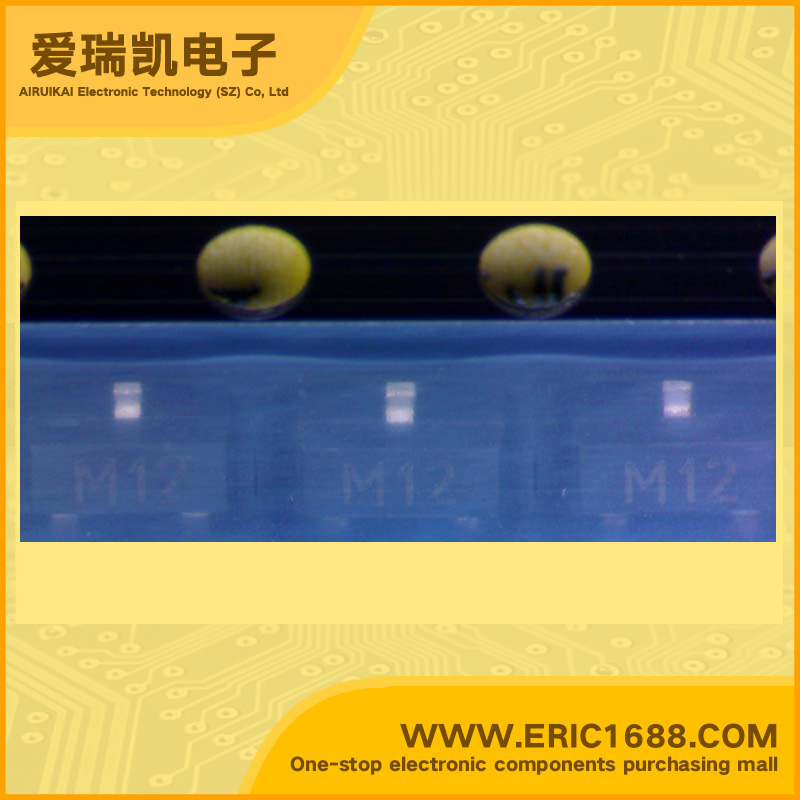

SM12.TC TVS/ESD 12V 12A SOT-23-12V marking M12

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
12V
反向击穿电压VBR
Breakdown Voltage
13.3V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
300W
峰值脉冲电流IPPm
Peak Forward Surge Current
12A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFeatures •TVS Diode Array •300 watts peak pulse power (tp= 8/20µs) •Transient protection for data & power lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs) •Protects one bidirectional line or two unidirectional lines •Working Voltages: 5V, 12V, 15V, 24 and 36V •Low clamping voltage •Solid-state silicon avalanche technology
描述与应用特点 •TVS二极管阵列 •300瓦峰值脉冲功率(TP =8/20μS) •暂态保护的数据和电源线 IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-4(EFT)40A(5/50ns) IEC61000-4-5(闪电)12A(8/20μS) •保护一个双向两线或单向线 •工作电压:5V,12V,15V,24和​​36V •低钳位电压 •固态硅雪崩技术
