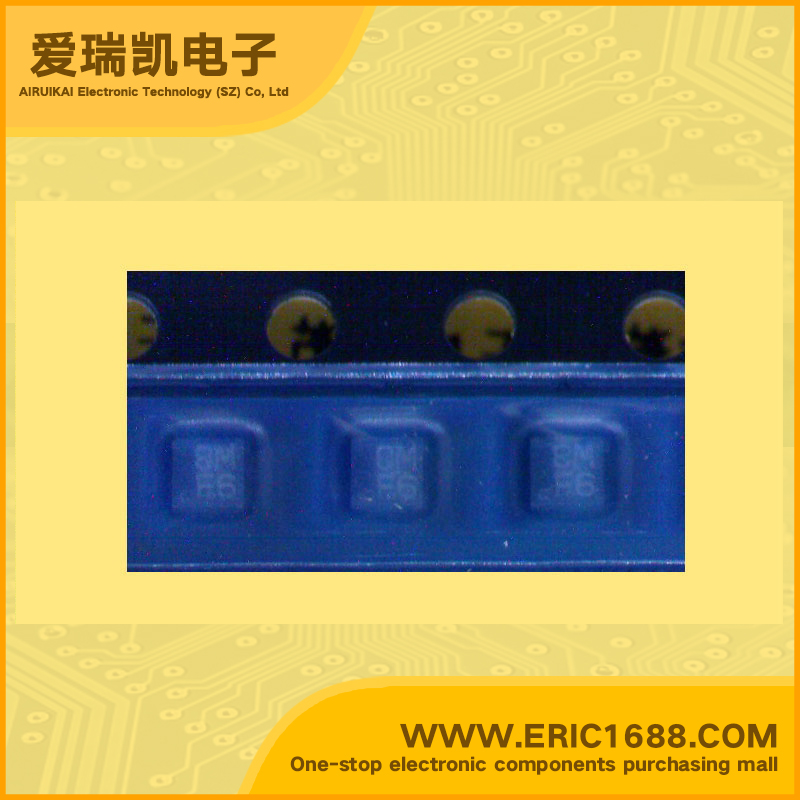

GMF05LC-HS3-GS08 TVS/ESD 5V 5A LLP75-6A marking F6
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 70W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 5A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | 5-Line ESD-Protection Diode Array in LLP75-6A；Features • Ultra compact LLP75-6A package • 5-line ESD-protection • Low leakage current IR < 0.1 µA • Low load capacitance of typ. 43 pF at VR = 0 V • ESD-immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge • Working voltage range VRWM = 5 V • Lead (Pb)-free component • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC |
| 描述与应用 | 5线ESD保护二极管阵列LLP75-6A;特性 •超小型LLP75-6A封装 •5线ESD保护 •低漏电流IR<0.1μA •低负载电容（典型值）。 43 pF@VR =0 V •防静电抗扰度符合。 IEC61000-4-2 ±30 kV接触放电 ±30 kV空气放电 •工作电压范围VRWM=5 V •无铅组件 •组件符合RoHS 2002/95/EC和WEEE 2002/96/EC |
